Руль для квадроциклов Polaris SPORTSMAN 90 - A07FA09AA/AB (2007)

Москва и регионы России

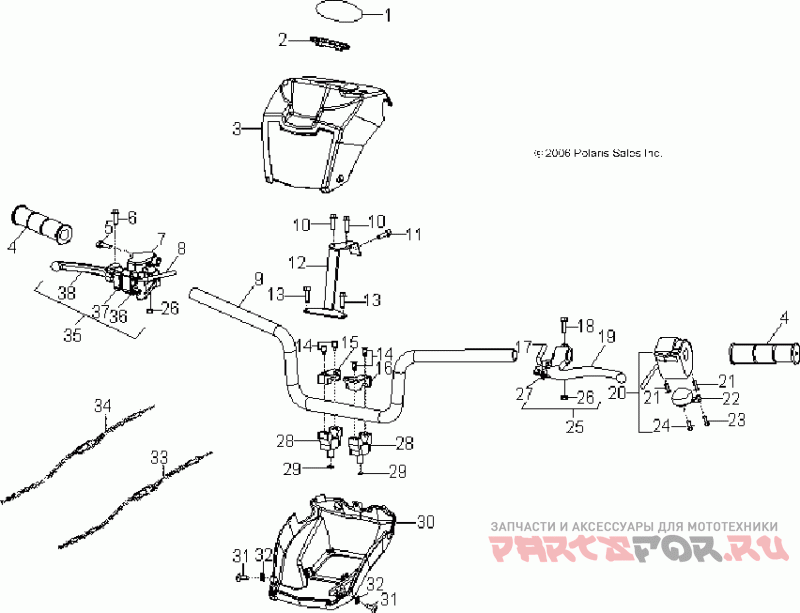

Руль

Polaris SPORTSMAN 90 - A07FA09AA/AB

Руль

#

oem код

название

цена

1

Decal-speedo, Sportsman 90

Decal-speedo, Sportsman 90

2

Bezel, Speedometer

Bezel, Speedometer

3

Pod-upper, Sportsman, Red ([ab] )

Pod-upper, Sportsman, Red ([ab] )

3

Pod-upper, Sportsman, Camo Grn ([aa] )

Pod-upper, Sportsman, Camo Grn ([aa] )

4

Grip-handlebar, Phoenix(nbr)

Grip-handlebar, Phoenix(nbr)

5

Bolt-phillips, 5mm

Bolt-phillips, 5mm

6

Bolt-brake Lvr, Rh(10)

Bolt-brake Lvr, Rh(10)

7

Lever-trottle, Rh

Lever-trottle, Rh

8

Wire-switch, Brake

Wire-switch, Brake

9

Handlebar, Black

Handlebar, Black

10

Винт

Винт

11

Bolt-phillips 93100-04016-k

Bolt-phillips 93100-04016-k

12

Brkt-mound, Pod, Blk

Brkt-mound, Pod, Blk

13

Screw-tapping(10)*

Screw-tapping(10)*

14

Bolt-socket, Hex(10)

Bolt-socket, Hex(10)

15

Clamp, Rh, Top

Clamp, Rh, Top

16

Clamp, Lh, Top

Clamp, Lh, Top

17

Sensor-brake

Sensor-brake

18

Bolt-brake Lvr, Lh

Bolt-brake Lvr, Lh

19

Lever,brake, Lh Blk

Lever,brake, Lh Blk

20

Asm-switch, Lh ([incl. 21-24] )

Asm-switch, Lh ([incl. 21-24] )

21

Болт (поставляется по 10шт)

Болт (поставляется по 10шт)

22

Asm-choke, Manual

Asm-choke, Manual

23

Болт

Болт

24

Bolt(10)*

Bolt(10)*

25

Asm-lever, Brake, Lh ([incl. 17-19, 26, 27] )

Asm-lever, Brake, Lh ([incl. 17-19, 26, 27] )

26

Nut-lock(10) *

Nut-lock(10) *

27

Lock-brake, Park

Lock-brake, Park

28

Clamp-saddle, Handle Bar*

Clamp-saddle, Handle Bar*

29

Nut-lock(10)

Nut-lock(10)

30

Pod-lower, Black

Pod-lower, Black

31

Screw-tapping(10) *

Screw-tapping(10) *

32

U-nut(10)

U-nut(10)

33

Cable-choke

Cable-choke

34

Трос газа

Трос газа

35

Asm-lever, Rh ([incl. 5-8, 26, 36-38] )

Asm-lever, Rh ([incl. 5-8, 26, 36-38] )

36

Arm-throttle

Arm-throttle

37

Brkt-brake Cable

Brkt-brake Cable

38

Lever,brake, Rh

Lever,brake, Rh
