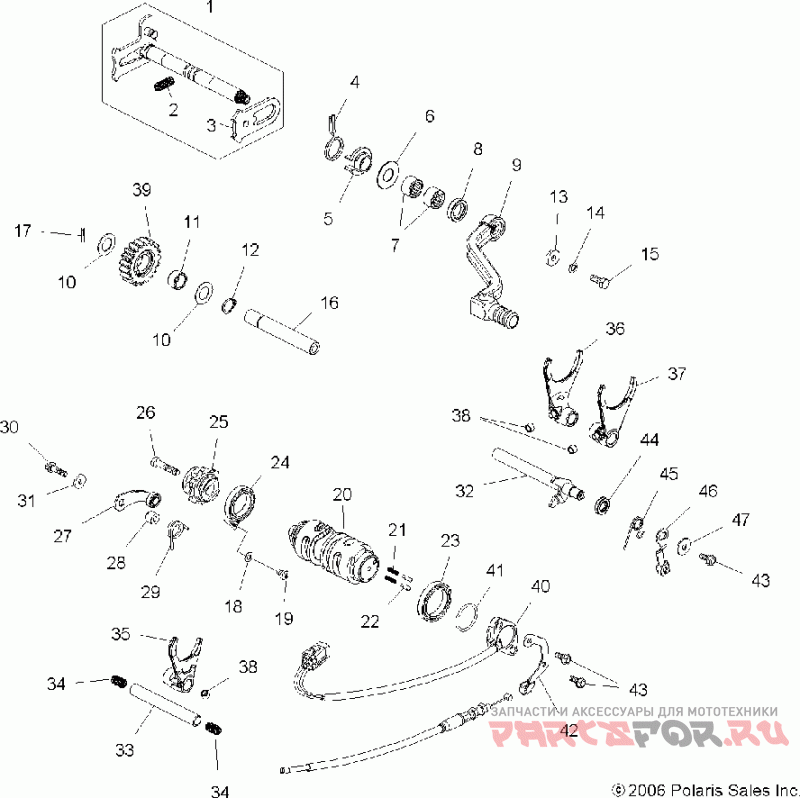

Engine, shifting mechanism

Polaris OUTLAW 525 - A07GP52AA/AB

Engine, shifting mechanism

#

oem код

название

цена

1

Asm-shiftshaft 525atv

Asm-shiftshaft 525atv

2

Spring-tension, Shiftshaft

Spring-tension, Shiftshaft

3

Plate-slide, Shiftshaft

Plate-slide, Shiftshaft

4

Spring-shaft Return, 2.2mm

Spring-shaft Return, 2.2mm

5

Guide-spring, Shift Shaft

Guide-spring, Shift Shaft

6

Washer-thrust, 14x30x1mm

Washer-thrust, 14x30x1mm

7

Bearing-needle Hk1412 14x20x12

Bearing-needle Hk1412 14x20x12

8

Seal-shaft, 14x24x6mm

Seal-shaft, 14x24x6mm

9

Asm-shift Lever, Complete, Atv

Asm-shift Lever, Complete, Atv

10

Washer-thrust, 14.1x24x1mm

Washer-thrust, 14.1x24x1mm

11

Bearing-needle, 14x18x10mm

Bearing-needle, 14x18x10mm

13

Washer-steel, 6.4x17x3mm

Washer-steel, 6.4x17x3mm

14

Washer-lock, Shiftlever

Washer-lock, Shiftlever

15

Scr-m6x16 Sochd Din933 10.9

Scr-m6x16 Sochd Din933 10.9

16

Shaft-reverse Gear Idler

Shaft-reverse Gear Idler

17

Pin-grooved Lock, Din1472, 3x16

Pin-grooved Lock, Din1472, 3x16

18

Washer-din0125-a 5.3mm

Washer-din0125-a 5.3mm

19

Scr-m5x8 Flathead Din7985

Scr-m5x8 Flathead Din7985

20

Drum-shift 525atv

Drum-shift 525atv

21

Spring-contact 3.7x14mm

Spring-contact 3.7x14mm

22

Pin-contact, 525atv

Pin-contact, 525atv

23

Bearing-ball Dpgrv 6806 C3

Bearing-ball Dpgrv 6806 C3

24

Bearing-ball Dpgrv 6805 C3

Bearing-ball Dpgrv 6805 C3

25

Drum-shift, Locating

Drum-shift, Locating

26

Scr-m6x30 Sochd Din7984

Scr-m6x30 Sochd Din7984

27

Asm-locklever, Trans, 525atv

Asm-locklever, Trans, 525atv

28

Sleeve-lock Lever, Trans

Sleeve-lock Lever, Trans

29

Spring-lock Lever, Trans

Spring-lock Lever, Trans

30

Scr-m5x20 Hx/fl 8mm Head

Scr-m5x20 Hx/fl 8mm Head

31

Washer-din7349 5x15x2mm

Washer-din7349 5x15x2mm

32

Shiftrail-reverse, Lock

Shiftrail-reverse, Lock

33

Shiftrail 525 Atv

Shiftrail 525 Atv

34

Spring-pressure Shiftrail

Spring-pressure Shiftrail

35

Shiftfork 525 Atv

Shiftfork 525 Atv

36

Shiftfork 525 Atv

Shiftfork 525 Atv

37

Shiftfork 525 Atv

Shiftfork 525 Atv

38

Bushing-shift Fork 6x8x5.2mm

Bushing-shift Fork 6x8x5.2mm

39

Gear-reverse, Idler

Gear-reverse, Idler

40

Sensor-gear Position 525atv

Sensor-gear Position 525atv

41

O-ring, 25.07x2.62mm Nbr70

O-ring, 25.07x2.62mm Nbr70

42

Bracket-cable, Reverse, 525atv

Bracket-cable, Reverse, 525atv

43

Scr-m5x16 Hx/fl 8mm Head

Scr-m5x16 Hx/fl 8mm Head

44

Seal-shaft 10x18x4 Viton

Seal-shaft 10x18x4 Viton

45

Spring-reverse Lever Return

Spring-reverse Lever Return

46

Lever-reverse Lock

Lever-reverse Lock

47

Washer-din 9021 A 5.3

Washer-din 9021 A 5.3
