Transmission cases для квадроциклов Polaris HAWKEYE 2X4/4X4 INTL - A07LB27FA/LH27FB (2007)

Москва и регионы России

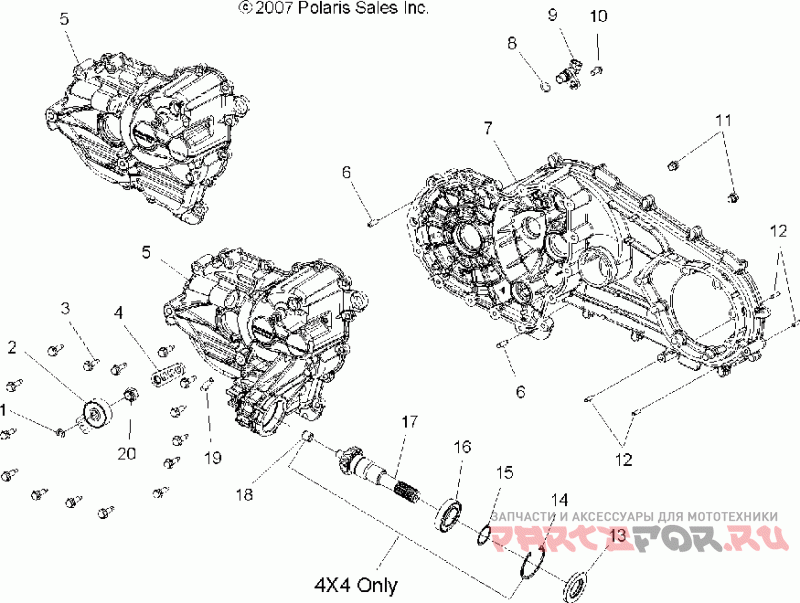

Transmission cases

Polaris HAWKEYE 2X4/4X4 INTL - A07LB27FA/LH27FB

Transmission cases

#

oem код

название

цена

1

Стопорное полукольцо

Стопорное полукольцо

2

Switch-rotary, 6 Pin

Switch-rotary, 6 Pin

3

Винт M8x1.25x30

Винт M8x1.25x30

4

Bell Crank

Bell Crank

5

245611: Case, Rh Mach ([lh27fb] )

245611: Case, Rh Mach ([lh27fb] )

5

245609: Case, Rh Mach ([lb27fa] )

245609: Case, Rh Mach ([lb27fa] )

6

Pin Dowel 5/16 X 1.0

Pin Dowel 5/16 X 1.0

7

245610: Case, Lh Mach

245610: Case, Lh Mach

8

Кольцо уплотнительное

Кольцо уплотнительное

9

Датчик скорости

Датчик скорости

10

Screw, Hex Head, M6 X 1 X 16

Screw, Hex Head, M6 X 1 X 16

11

Plug, M12x1.5 Hexhead, W/o-ring

Plug, M12x1.5 Hexhead, W/o-ring

12

Pin, Dowel, 6 X 20

Pin, Dowel, 6 X 20

13

Seal, 35 X 62 X 8 ([lh27fb] )

Seal, 35 X 62 X 8 ([lh27fb] )

14

Ring, Retning Bvld Intrnl 2.440 ([lh27fb] )

Ring, Retning Bvld Intrnl 2.440 ([lh27fb] )

15

Ring, Retnng Beveled Extnl1.375 ([lh27fb] )

Ring, Retnng Beveled Extnl1.375 ([lh27fb] )

16

Bearing, Ball ([lh27fb] )

Bearing, Ball ([lh27fb] )

17

11t Snorkel Subassembly ([lh27fb] )

11t Snorkel Subassembly ([lh27fb] )

18

Bearing, Plain.500x.594x.625 ([lh27fb] )

Bearing, Plain.500x.594x.625 ([lh27fb] )

19

Tube-vent, 90-1/4" Hose

Tube-vent, 90-1/4" Hose

20

Nut, Lockhexflange, Nylon M14x2

Nut, Lockhexflange, Nylon M14x2
