Карбюратор для квадроциклов Polaris PREDATOR 50 - A06KA05CA (2006)

Москва и регионы России

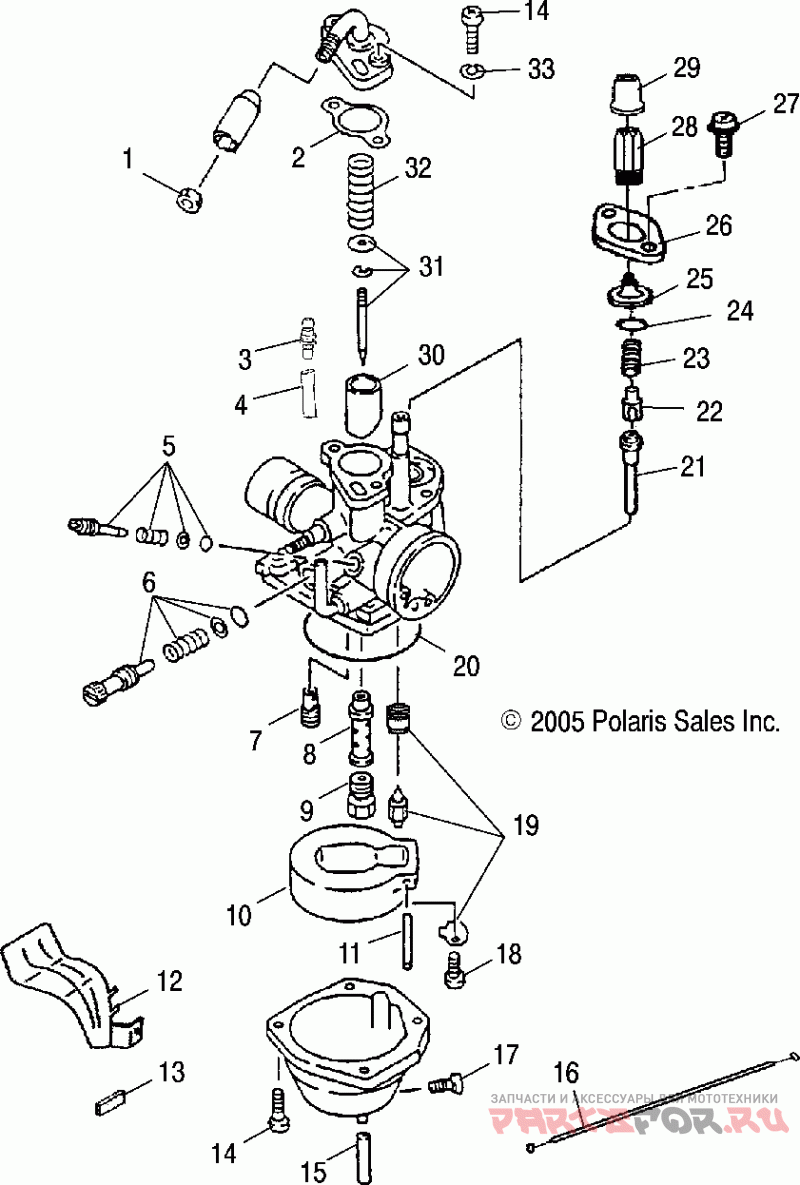

Карбюратор

Polaris PREDATOR 50 - A06KA05CA

Карбюратор

#

oem код

название

цена

1

Nut-throttle Cable Adjust

Nut-throttle Cable Adjust

2

Прокладка

Прокладка

3

Пробка (Отпускается по 10 шт)

Пробка (Отпускается по 10 шт)

4

Tube-carb(10)

Tube-carb(10)

5

Set-screw, Air

Set-screw, Air

6

Set-screw, Throttle

Set-screw, Throttle

7

Jet-pilot, 30

Jet-pilot, 30

8

Needle, Nozzle

Needle, Nozzle

9

Jet-main, 77.5

Jet-main, 77.5

10

Float-carb

Float-carb

11

Pin-flaot

Pin-flaot

12

Shroud-cylinder

Shroud-cylinder

13

Rubber-antivibration (10)

Rubber-antivibration (10)

14

Bolt-pan

Bolt-pan

15

Tube-overflow

Tube-overflow

16

Трос , дросельной заслонки

Трос , дросельной заслонки

17

Plug-drain*

Plug-drain*

18

Bolt-pan, Phillips

Bolt-pan, Phillips

19

Asm-needle & Seat, 1.2

Asm-needle & Seat, 1.2

20

Seal, Float Chamber

Seal, Float Chamber

21

Nozzle-choke*

Nozzle-choke*

22

Valve, Choke

Valve, Choke

23

Spring, Choke Return(10)

Spring, Choke Return(10)

24

O-ring(10)*

O-ring(10)*

25

Base, Manual Choke

Base, Manual Choke

26

Bracket, Manual Choke

Bracket, Manual Choke

27

Screw, Pan W/washer

Screw, Pan W/washer

28

Support, Cable

Support, Cable

29

Cover, Cable Support

Cover, Cable Support

30

Slide, Carb

Slide, Carb

31

Set, Needle

Set, Needle

32

Spring-throttle Stop

Spring-throttle Stop

33

Washer-spring

Washer-spring

Asm-carburetor ([incl. All Less 12, 13] )

Asm-carburetor ([incl. All Less 12, 13] )
