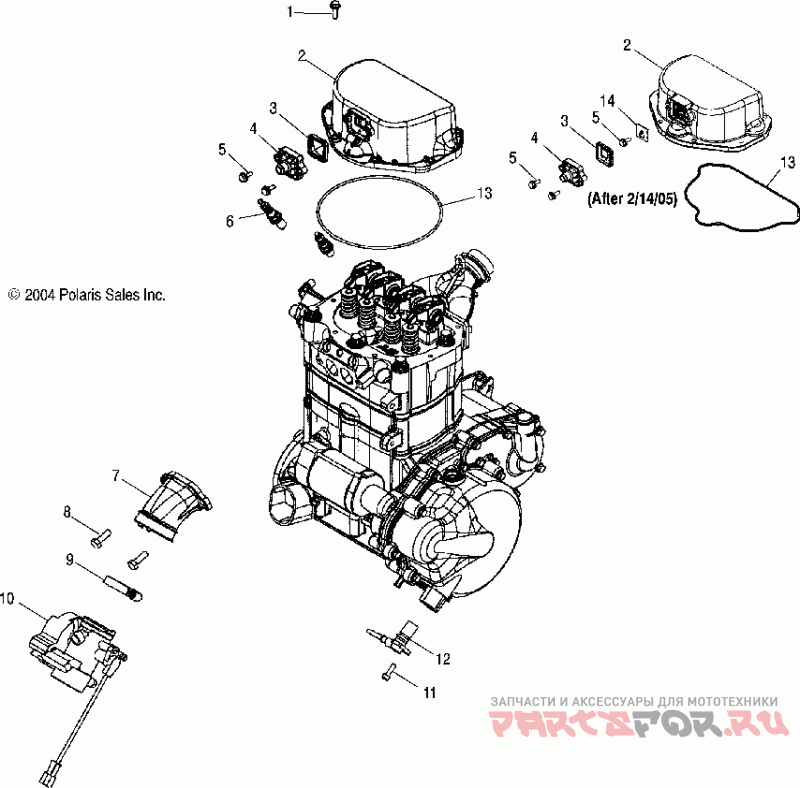

Throttle body mounting

Polaris SPORTSMAN 700 EFI - A05MH68AC

Throttle body mounting

#

oem код

название

цена

1

Винт

Винт

2

Kit-valve Cover (if Built Before 2/14/05)

Kit-valve Cover (if Built Before 2/14/05)

2

Cover-valve, Mach (if Built After 2/14/05)

Cover-valve, Mach (if Built After 2/14/05)

3

Asm-reed W/gasket (if Built Before 2/14/05)

Asm-reed W/gasket (if Built Before 2/14/05)

3

Gasket-breather (if Built After 2/14/05)

Gasket-breather (if Built After 2/14/05)

4

Крышка

Крышка

5

Screw (qty. 3 If Built Before 2/14/05)

Screw (qty. 3 If Built Before 2/14/05)

6

Sparkplug-champion Rc7yc3 (4)

Sparkplug-champion Rc7yc3 (4)

7

Adaptor-throttle Body

Adaptor-throttle Body

8

Винт

Винт

9

Clamp-hose

Clamp-hose

10

Kit-throttle Body, 1202836

Kit-throttle Body, 1202836

10

Sensor-throttle Position Keihn

Sensor-throttle Position Keihn

11

Винт M6x20

Винт M6x20

12

Датчика положение коленвала

Датчика положение коленвала

13

Seal-o-ring, .125 Hollow (if Built Before 2/14/05)

Seal-o-ring, .125 Hollow (if Built Before 2/14/05)

13

Seal-valve Cover (if Built After 2/14/05)

Seal-valve Cover (if Built After 2/14/05)

14

Plate-breather (if Built After 2/14/05)

Plate-breather (if Built After 2/14/05)
