Картер для квадроциклов Polaris SPORTSMAN 600 - A05MH59AK (2005)

Москва и регионы России

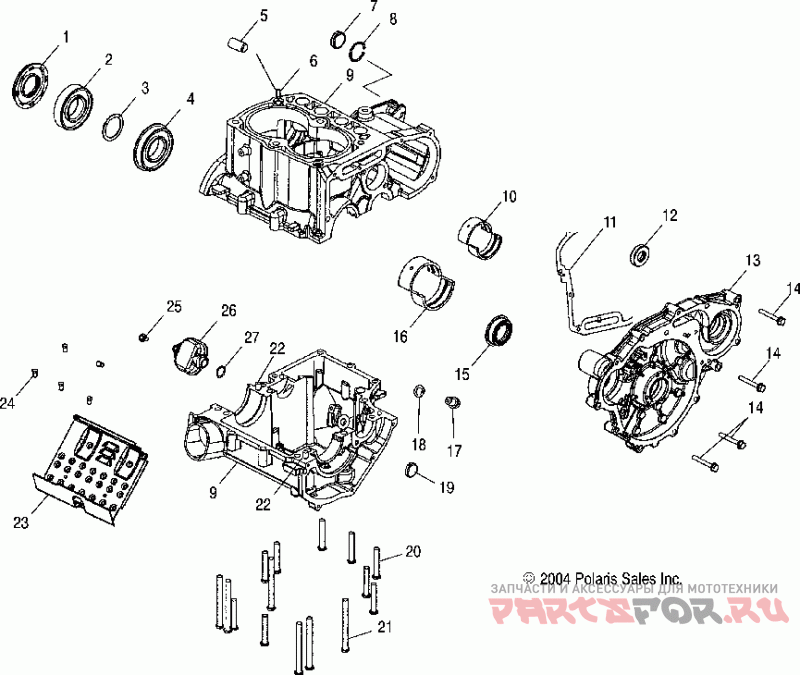

Картер

Polaris SPORTSMAN 600 - A05MH59AK

Картер

#

oem код

название

цена

1

Seal-flange, 35x72x7, Cr

Seal-flange, 35x72x7, Cr

2

Подшипник

Подшипник

3

Bushing-35x44x3.00 Mm-b (10)

Bushing-35x44x3.00 Mm-b (10)

4

Подшипник

Подшипник

5

Plug-hex Socket 1/4x18

Plug-hex Socket 1/4x18

6

Dowel-hol, M16x12, 0600089

Dowel-hol, M16x12, 0600089

7

Plug, Expansion, 48mm

Plug, Expansion, 48mm

8

Ring-retaining, 1 5/8 (10)

Ring-retaining, 1 5/8 (10)

9

Kit-crankcase ([incl. 17-27] )

Kit-crankcase ([incl. 17-27] )

10

Вкладыш

Вкладыш

11

Gasket-cover, Mag Double Bead

Gasket-cover, Mag Double Bead

12

Сальник 15x35x8

Сальник 15x35x8

13

Asm-cover, Engine Mag

Asm-cover, Engine Mag

14

Винт m6x1.0x45

Винт m6x1.0x45

15

Seal-flanged, 24x44x10 W/helix

Seal-flanged, 24x44x10 W/helix

16

Подшипник

Подшипник

17

Plug-socket, M12x1.5 Din 908a

Plug-socket, M12x1.5 Din 908a

18

Washer-19x12x1.3-copper (10)

Washer-19x12x1.3-copper (10)

19

Plug, Expansion, 19mm

Plug, Expansion, 19mm

20

Scr-m8x1.25x50 Hx/fl-y

Scr-m8x1.25x50 Hx/fl-y

21

Scr-m8x1.25x90 Hx/fl-y

Scr-m8x1.25x90 Hx/fl-y

22

Штифт

Штифт

23

Plate-baffle, Crankcase

Plate-baffle, Crankcase

24

Винт m5x.80x8

Винт m5x.80x8

25

Bolt(1)

Bolt(1)

26

Asm-oil Pickup

Asm-oil Pickup

27

Seal-o-ring, .070x.614

Seal-o-ring, .070x.614

13

Asm-cover, Engine Mag

Asm-cover, Engine Mag
