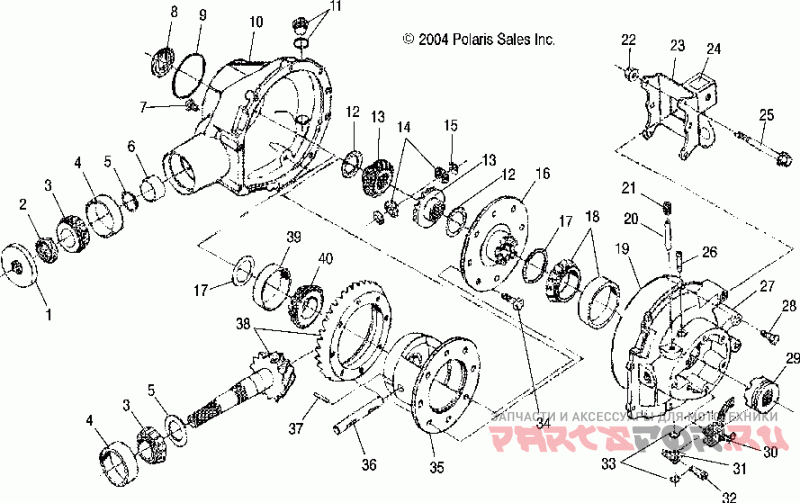

Rear carrier

Polaris ATP 500 4X4 - A05JD50AA

Polaris
#oem кодцена
1
3610102
Seal-oil, Pinion 026hh102
2
7547243
Nut-pinion 026hn104
3
3514432
Bearing-cone, Pinion 585974
4
3514431
Bearing-cup, Pinion 3514431
5
2875332
Kit-pinion, Shim
6
5133762
Spacer-bearing, Pinion 026hs102
7
5133731
Заглушка
8
3610101
Seal-oil, Shaft
9
5412339
O-ring 026hh104
10
5133765
Housing-half, Carrier 026ch100
11
5133736
Plug-fill/check
12
7556268
Washer-thrst, Side Gear026hn103
13
5133767
Gear-side, Diff 026gd108
14
5133768
Gear-pinion, Mate, Diff 026gc100
15
7556267
Washer-thrust, Pinion 026hn102
16
5133758
Cover-half, Diff Case 026dc102
17
2875333
Kit-differential, Shim
18
3514435
Bearing-tapered Roller026hd101
19
5412338
O-ring-housing Halves 026hh103
20
5133755
Shaft-pivot, Shift Yoke026ss100
21
7518171
Screw-set 026hm106
22
7547242
Nut-hex, Flanged 026hn105
23
1014155
Asm-hitch 026ht100
24
7170911
Decal-hitch, 1225 Lbs.
25
7518175
Bolt-hex Flanged 026hm102
26
7052334
Vent-tube 026hn106
27
5133764
Cover-half, Carrier 026ch102
28
7518172
Bolt-hex, Flanged, 026hm103
29
5133757
Gear-clutch 026hs104
30
5133759
Yoke-shift 026sv100
31
7042209
Spring-lever, Shift 026he100
32
5133760
Lever-shift 026sv101
33
7042210
Spring-return, Shift 026he101
34
7518173
Bolt-hex 41221
35
5133777
Case-half, Diff 026dc100
36
5133769
Pin-cross, Diff 026dp100
37
7661164
Pin-roll, Diff 500596-15
38
1341454
Asm-hypiod Gear 0266a100x
39
3514433
Bearing-diff 585911
40
3514434
Bearing-cone, Diff 550433
