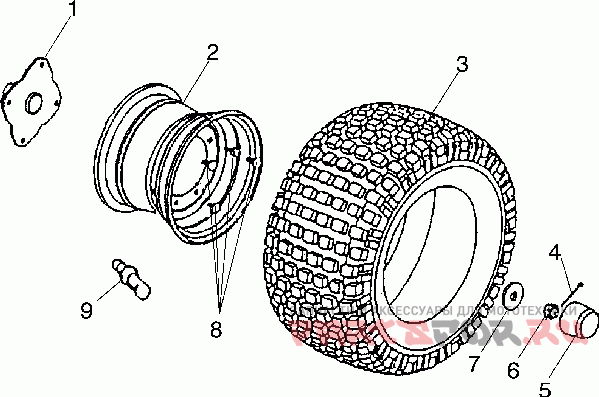

Заднее колесо
Polaris SCRAMBLER 90 - A03EA09CA
| # | oem код | название | цена |
|---|---|---|---|
1 | 0450831-385 Hub-wheel, Silver | Hub-wheel, Silver | |
2 | 0451068 Wheel 8 Inch, White | Wheel 8 Inch, White | |
3 | 0450909 Tire, 18x9.5-8 ([18x9.5-8] ) | Tire, 18x9.5-8 ([18x9.5-8] ) | |
4 | 0450395 Pin-cotter (10) | Pin-cotter (10) | |
5 | 0450829 Cap-rubber * | Cap-rubber * | |
6 | 0450409 Nut-lock(10) * | Nut-lock(10) * | |
7 | 0450412 Washer(10)* | Washer(10)* | |
8 | 0450124 Bolt-hex Wshr Face(10) * | Bolt-hex Wshr Face(10) * | |
9 | 0450401 Клапан обода | Клапан обода | |
1 | 0450831 Connector-shaft* | Connector-shaft* | |
8 | 0450398 Bolt-carriage(10) 93000-08016-b | Bolt-carriage(10) 93000-08016-b |
