Headlight magnum 6x6 для квадроциклов Polaris MAGNUM 6X6 - W968744 (1996)

Москва и регионы России

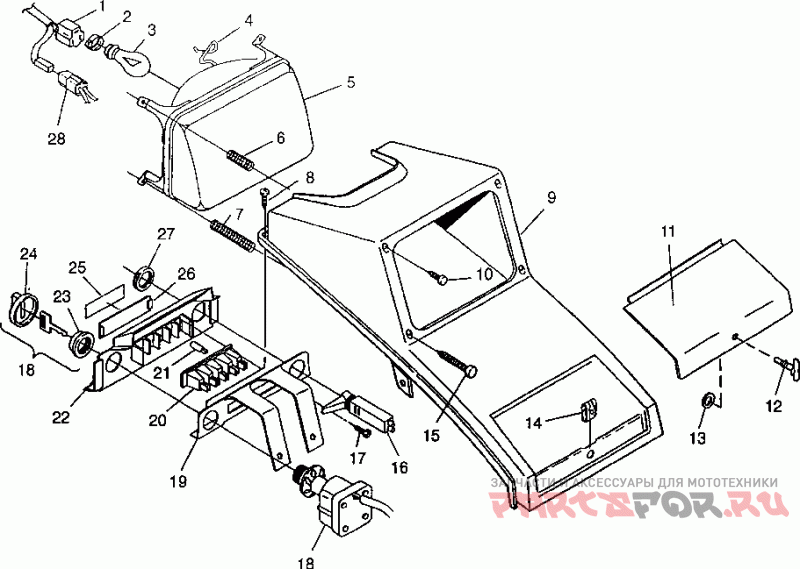

Headlight magnum 6x6

Polaris MAGNUM 6X6 - W968744

Headlight magnum 6x6

#

oem код

название

цена

1

Жгут проводов фары

Жгут проводов фары

2

Cover, Socket, H/l.

Cover, Socket, H/l.

3

Лампа

Лампа

4

Фиксатор

Фиксатор

5

H/l Asm, W/bulbseal

H/l Asm, W/bulbseal

6

Пружина

Пружина

7

Spring, Adj.

Spring, Adj.

8

Винт

Винт

10

Винт m5x.8x50mm

Винт m5x.8x50mm

12

Fastener, 1/4 Turn

Fastener, 1/4 Turn

13

Ring, Split Retainer

Ring, Split Retainer

14

Receptacle, Clip-on

Receptacle, Clip-on

15

Screw, Adjust, (atv)

Screw, Adjust, (atv)

16

Kit-choke Control

Kit-choke Control

17

Винт

Винт

18

Switch, Ignition (see Footnote) Note: Ignition Key May Be Ordered By Using The 4 Digit Number On The Key.

Switch, Ignition (see Footnote) Note: Ignition Key May Be Ordered By Using The 4 Digit Number On The Key.

19

Brkt, Ign. Panel

Brkt, Ign. Panel

20

Strip, Socket

Strip, Socket

21

Bulb

Bulb

22

Panel, Ignition

Panel, Ignition

23

Nut, Ign.switch

Nut, Ign.switch

24

Крышка ключа

Крышка ключа

26

Lens Asm, Pilot Light (incl. 25)

Lens Asm, Pilot Light (incl. 25)

27

Гайка

Гайка

28

Hsg, Dual, Female

Hsg, Dual, Female
