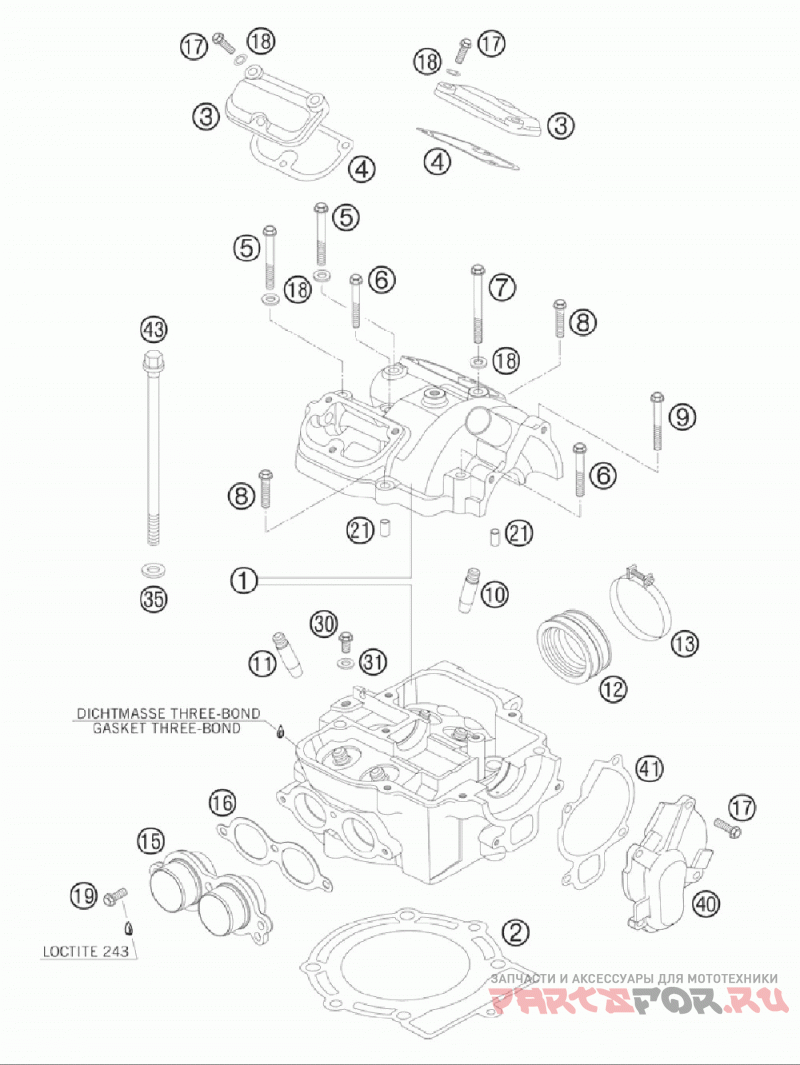

Головка цилиндра

KTM 525 EXC ATV ENGINE

KTM
#oem кодцена
1
83036020144
Cylinder Head Cpl. Atv 07
2
59030036000
Cylinder Head Gasket 95, 3 Mm
3
58036052200
Valve Cover Rear
4
58036053000
Valve Cover Gasket
5
0025060556
Hh Collar Screw M6x55 Tx30
6
0025060456
Hh Collar Screw M6x45 Tx30
7
0025060756
Hh Collar Screw M6x75 Tx30
8
0025060306
Воротник Винт M6x30 Tx30
9
0025060506
Hh Collar Screw M6x50 Tx30
10
59036025101
Valve Guide Intake
11
59036026101
Valve Guide Exhaust
12
59436044200
Intake Boot 450 Sx
13
59030061000
Clamp D=56mm B=9mm M4x25
15
59436039000
Exhaust Flange Cpl. 450/525 03
16
59036041000
Gasket Exhaust Flange
17
0025060206
Hh Collar Screw M6x20 Tx30
18
0603061001
Cu-seal Ring Din7603-6x10x1
19
0025060166
Hh Collar Screw M6x16 Tx30
21
59030023000
Dowel 6x8x11, 5
30
59036006090
Vent Screw M6x10 Cpl.
31
58036065100
Cu-seal Ring 6 X 10 X 2
35
59036090000
Washer 10, 8x18, 8x1, 5
40
59035052000
Water Pump Cover Racing 2000
41
59035053000
Water Pump Cover Gasket 0, 8mm
43
59036079100
Cyl. Head Screw M10x158 Ws=13
