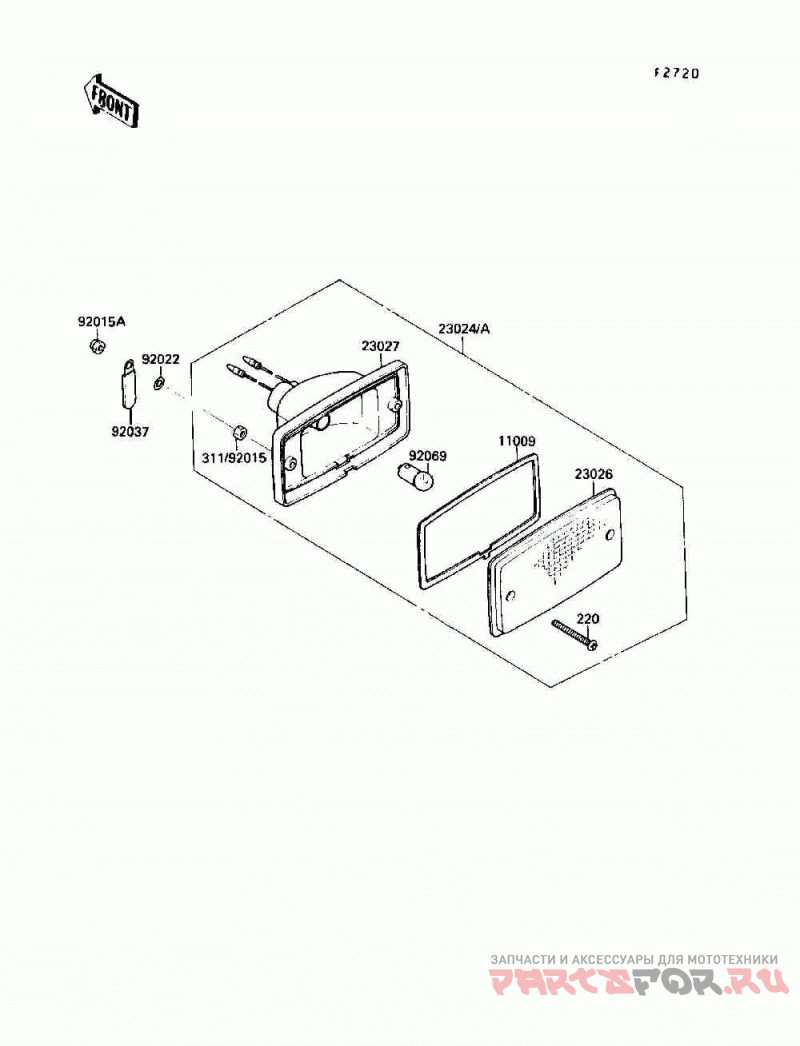

Задний фонарь
Kawasaki Bayou 220 (KLF220-A3)
| # | oem код | название | цена |
|---|---|---|---|
220 | 220B0425 Screw Pan Head 4x25 | Screw Pan Head 4x25 | |
11009 | 11009-4004 Прокладка | Прокладка | |
23026 | 23026-4003 Lens, Tail Lamp | Lens, Tail Lamp | |
92015A | 92015-1695 Гайка | Гайка | |
92022 | 92022-1681 Washer, 4.5x14x0.6 | Washer, 4.5x14x0.6 | |
92037 | 92037-1539 Зажим, жгут проводов | Зажим, жгут проводов | |
92069 | 92069-1012 Bulb, 12v 4cp | Bulb, 12v 4cp | |
220 | 220AA0425 Screw-pan Cros, 4x25 | Screw-pan Cros, 4x25 | |
311 | 311H0400 Nut-hex, 4mm | Nut-hex, 4mm | |
23024 | 23024-1113 Lamp-assy-tail | Lamp-assy-tail | |
23027 | 23027-4001 Body-comp-tail Lamp | Body-comp-tail Lamp |
