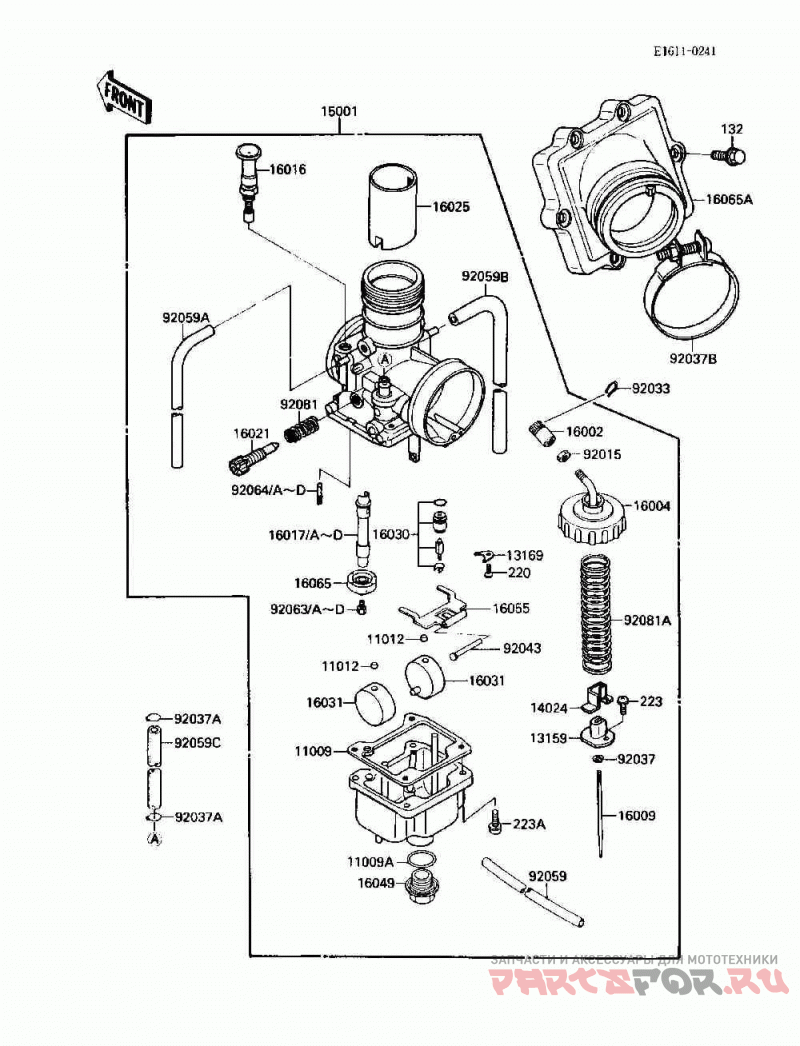

Carburetor(kxf250-a1)

Kawasaki Tecate 4 (KXF250-A1)

Kawasaki
#oem кодцена
11009
11009-1275
Прокладка
11009A
16038-009
Gasket-cover
11012
11012-1047
Cap, Float
13159
13159-1010
Connector, Throttle
13169
13169-1190
Пластина
14024
14025-1113
Cover, Throttle, Valve
15001
15001-1338
Carburetor-assy
16002
16002-1006
Adjuster, Cable
16004
16004-1013
Cap-chamber, Mixing
16009
16009-1350
Needle-jet, 6fl61-3
16016
16016-1013
Plunger Assy, Starter
16017
16017-1295
Jet-needle, Q-8 (option)
16017A
16017-1306
Jet-needle, Q-6 (option)
16017B
16017-1333
Jet-needle, Q-4
16017C
16017-1334
Jet-needle, Q-2 (option)
16017D
16017-1336
Jet-needle, Q-0 (option)
16021
16021-1030
Screw, Throt Vlv Adjst
16025
16025-1145
Valve-throttle, Ca 3.0
16030
16030-1020
Valve-float, 3.3
16031
16031-029
Поплавок
16049
16049-006
Cover, Main Jet
16055
16055-009
Коромысло
16065
16065-1045
Держатель
16065A
16065-1163
Holder-carburetor
92015
16003-004
Nut Cable Adjust Lock
92033
92036-018
Пружинное стопорное кольцо
92037
16008-010
Пружинное стопорное кольцо
92037A
92037-147
Зажим
92037B
92037-1486
Clamp, 55mm
92043
16032-008
Палец
92059
92059-1211
Tube, 3.5x6.5x350
92059A
92059-1858
Tube, 4x7x250
92059B
92059-1877
Tube, 4x7x250
92059C
92059-3731
Tube, 2.5x5.8x270
92063
92063-026
Jet-main No 240a (option)
92063A
92063-027
Jet-main No 250a (option)
92063B
92063-028
Jet-main No 260a
92063C
92063-029
Jet-main No 270a (option)
92063D
92063-030
Jet-main No 280a (option)
92064
92064-022
Jet-pilot No 30
92064A
92064-023
Jet-pilot No 35 (option)
92064B
92064-024
Jet-pilot No 40 (option)
92064C
92064-1020
Pilot Jet, #a25 (option)
92064D
92064-1033
Jet-pilot, #27.5 (option)
92081
16022-005
Spring Thr Stop Screw
92081A
92081-1432
Spring, Throttle Valve
132
132BA0620
Болт М6
220
220AA0406
Screw-pan Cros, 4x6
223
223B0308
Screw-pan-ws-cros
223A
223B0518
Screw-pan-ws-cros
223A
223AA0518
Screw-pan-ws-cros
223
223AA0307
Screw-pan-ws-cros
