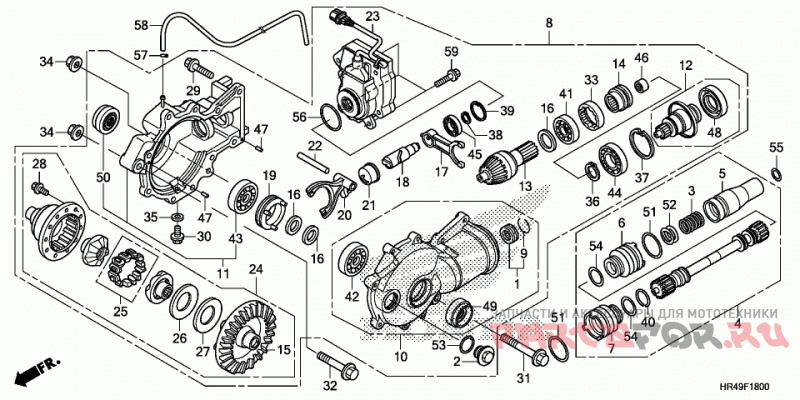

Передний редуктор

Honda TRX520FM1 2AC

Honda
#oem кодцена
1
06910-HR4-A21
BEARING SET, NEEDLE
10
41411-HR4-A21
CASE SUB-ASSY., FR. FINAL GEAR
11
41412-HR4-A21
COVER SUB-ASSY., FR. FINAL GEAR
12
41500-HR4-A21
JOINT SUB-ASSY., FR. FINAL CLUTCH
13
41521-HR4-A21
GEAR, FR. PINION (13T)
14
41527-HR4-A21
SLEEVE, FR. FINAL CLUTCH
15
41531-HR4-A21
GEAR, FR. RING (42T)
16
41540-HR4-A21
SHIM A, DIFFERENTIAL CASE (0.60)
16
41541-HR4-A21
SHIM B, DIFFERENTIAL CASE (0.65)
16
41542-HR4-A21
SHIM C, DIFFERENTIAL CASE (0.70)
16
41543-HR4-A21
SHIM D, DIFFERENTIAL CASE (0.75)
16
41544-HR4-A21
SHIM E, DIFFERENTIAL CASE (0.80)
16
41545-HR4-A21
SHIM F, DIFFERENTIAL CASE (0.85)
16
41546-HR4-A21
SHIM G, DIFFERENTIAL CASE (0.90)
16
41547-HR4-A21
SHIM H, DIFFERENTIAL CASE (0.95)
16
41548-HR4-A21
SHIM I, DIFFERENTIAL CASE (1.00)
16
41549-HR4-A21
SHIM J, DIFFERENTIAL CASE (1.05)
16
41550-HR4-A21
SHIM K, DIFFERENTIAL CASE (1.10)
16
41551-HR4-A21
SHIM L, DIFFERENTIAL CASE (1.15)
16
41552-HR4-A21
SHIM M, DIFFERENTIAL CASE (1.20)
16
41553-HR4-A21
SHIM N, DIFFERENTIAL CASE (1.25)
16
41554-HR4-A21
SHIM O, DIFFERENTIAL CASE (1.30)
16
41555-HR4-A21
SHIM P, DIFFERENTIAL CASE (1.35)
16
41556-HR4-A21
SHIM Q, DIFFERENTIAL CASE (1.40)
16
41557-HR4-A21
SHIM R, DIFFERENTIAL CASE (1.45)
17
41560-HR4-A21
FORK, FR. FINAL CLUTCH
18
41565-HR4-A21
SHAFT, SCREW
19
41627-HR4-A21
SLEEVE, DIFFERENTIAL LOCK
2
12361-300-000
CAP, TAPPET ADJUSTING HOLE
20
41661-HR4-A21
FORK, DIFFERENTIAL LOCK
21
41665-HR4-A21
CAM, DIFFERENTIAL LOCK
22
41666-HR4-A21
SHAFT, DIFFERENTIAL LOCK FORK
23
41700-HR4-A21
ACTUATOR ASSY.
24
42400-HR4-A21
DIFFERENTIAL ASSY. (42T)
25
42440-HN5-671
FOLLOWER SET, CAM
26
42451-HN7-003
SHIM A (1.3)
26
42452-HN7-003
SHIM B (1.4)
26
42453-HN7-003
SHIM C (1.5)
26
42454-HN7-003
SHIM D (1.6)
26
42455-HN7-003
SHIM E (1.7)
26
42456-HN7-003
SHIM F (1.8)
26
42457-HN7-003
SHIM G (1.9)
27
42461-HN5-671
SPRING, DIFFERENTIAL SIDE CONED
28
90101-HN8-000
Болт (8x17)
29
90102-HR4-A21
Болт (8x25)
3
40215-HM7-000
SPRING, SHAFT
30
90109-371-000
Болт (8мм)
31
90102-HR6-B00
BOLT, FLANGE (10X96)
32
90182-MB2-003
BOLT, FLANGE (10X66)
33
90244-HA0-000
NUT, LOCK (60MM)
34
90305-HC0-770
NUT, SELF-LOCK (10MM)
35
90471-580-000
Прокладка
36
90651-HR4-A21
CIRCLIP (OUTER) (45MM)
37
90652-HR4-A21
CIRCLIP (INNER) (68MM)
38
90653-HR4-A21
CIRCLIP (OUTER) (17MM)
39
90654-HR4-A21
CIRCLIP (INNER) (35MM)
4
40400-HR4-A20
SHAFT ASSY., FR. PROPELLER
40
91012-KF0-000
CLIP, NEEDLE THRUST BEARING (12MM)
41
91051-HR4-A21
BEARING, RADIAL BALL (32X58X13)
42
91052-HR4-A21
BEARING, RADIAL BALL (32X28X13)
43
91052-HR4-A21
BEARING, RADIAL BALL (32X28X13)
44
91053-HR4-A21
BEARING, RADIAL BALL (45X68X12)
45
91054-HR4-A21
BEARING, RADIAL BALL (17X35X10)
46
91055-HR4-A21
BEARING, NEEDLE (12X18X12)
47
91151-HR4-A21
PIN, DOWEL (5MM)
48
91251-HR4-A21
DUST SEAL (51.5X72X9)
49
91252-HC5-003
OIL SEAL (22X48X7) (ARAI)
5
40402-HR3-A20
JOINT, FR. PROPELLER SHAFT
50
91252-HC5-003
OIL SEAL (22X48X7) (ARAI)
51
91302-HM7-A00
BAND, BOOT (D27)
52
91302-HN5-671
SEAL, PROPELLER
53
91302-001-020
Колечко (30.8mm)
54
91303-HM7-A00
Соеденительное кольцо
55
91311-MB0-003
O-RING (18.5X2.4) (ARAI)
56
91351-HR4-A21
O-RING (38MM)
57
95002-35000
CLIP, TUBE (C6.5)
58
95005-35001-30M
BULK HOSE, VACUUM (3.5X1000) (3.5X660)
59
95701-06020-08
Болт (6x20)
6
40420-HM7-A00
BOOT B, PROPELLER
7
40420-HP5-600
BOOT, PROPELLER SHAFT COVER
8
41400-HR4-A21
GEAR ASSY., FR. FINAL
9
41405-HA7-670
Стопорное кольцо
