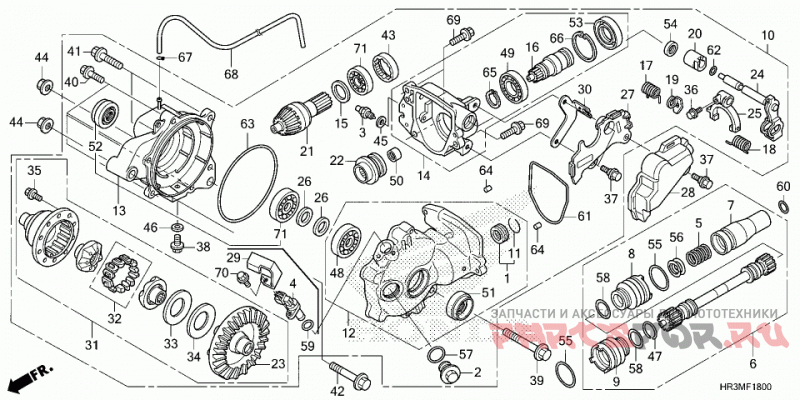

Передний редуктор

Honda TRX420FM2 2AC

Honda
#oem кодцена
1
06910-HN8-000
BEARING SET, NEEDLE
10
41400-HR3-W50
GEAR ASSY., FR. FINAL
11
41405-HA7-670
Стопорное кольцо
12
41411-HR3-W50
CASE SUB-ASSY., FR. GEAR
13
41412-HR3-A20
COVER SUB-ASSY., FR. GEAR CASE
14
41413-HR3-W50
CASE SUB-ASSY., FR. CLUTCH
15
41447-HM8-000
SHIM A, PINION GEAR (1.64)
15
41448-HM8-000
SHIM B, PINION GEAR (1.70)
15
41449-HM8-000
SHIM C, PINION GEAR (1.76)
15
41451-HM8-000
SHIM D, PINION GEAR (1.82)
15
41452-HM8-000
SHIM E, PINION GEAR (1.88)
15
41453-HM8-000
SHIM F, PINION GEAR (1.94)
15
41454-HM8-000
SHIM G, PINION GEAR (2.00)
15
41455-HM8-000
SHIM H, PINION GEAR (2.06)
15
41456-HM8-000
SHIM I, PINION GEAR (2.12)
15
41457-HM8-000
SHIM J, PINION GEAR (2.18)
16
41502-HL1-A01
JOINT, FR. FINAL CLUTCH
17
41503-HP5-600
SPRING, FR. FINAL CLUTCH
18
41504-HP5-600
SPRING, FR. FINAL CLUTCH LOCK
19
41505-HP5-600
STOPPER, FR. FINAL CLUTCH
2
12361-300-000
CAP, TAPPET ADJUSTING HOLE
20
41506-HP5-600
COLLAR, FR. FINAL CLUTCH
21
41521-HR0-F00
GEAR, FR. PINION (13T)
22
41527-HR0-F00
SLEEVE, FR. FINAL CLUTCH
23
41531-HR3-A20
GEAR, FR. RING (42T)
24
41540-HP5-600
SHAFT, FR. FINAL CLUTCH
25
41550-HP5-600
FORK, FR. FINAL CLUTCH
26
41631-HR0-F00
SHIM A, RING GEAR (0.50)
26
41632-HR0-F00
SHIM B, RING GEAR (0.55)
26
41633-HR0-F00
SHIM C, RING GEAR (0.60)
26
41634-HR0-F00
SHIM D, RING GEAR (0.65)
26
41635-HR0-F00
SHIM E, RING GEAR (0.70)
26
41636-HR0-F00
SHIM F, RING GEAR (0.75)
26
41637-HR0-F00
SHIM G, RING GEAR (0.80)
26
41638-HR0-F00
SHIM H, RING GEAR (0.85)
26
41639-HR0-F00
SHIM I, RING GEAR (0.90)
26
41640-HR0-F00
SHIM J, RING GEAR (0.95)
26
41641-HR0-F00
SHIM K, RING GEAR (1.00)
26
41642-HR0-F00
SHIM L, RING GEAR (1.05)
26
41643-HR0-F00
SHIM M, RING GEAR (1.10)
26
41644-HR0-F00
SHIM N, RING GEAR (1.15)
26
41645-HR0-F00
SHIM O, RING GEAR (1.20)
26
41646-HR0-F00
SHIM P, RING GEAR (1.25)
26
41647-HR0-F00
SHIM Q, RING GEAR (1.30)
26
41648-HR0-F00
SHIM R, RING GEAR (1.35)
26
41649-HR0-F00
SHIM S, RING GEAR (1.40)
26
41650-HR0-F00
SHIM T, RING GEAR (1.45)
26
41651-HR0-F00
SHIM U, RING GEAR (1.50)
26
41652-HR0-F00
SHIM V, RING GEAR (1.55)
26
41653-HR0-F00
SHIM W, RING GEAR (1.60)
27
41711-HP5-600
CASE, CLUTCH ARM
28
41712-HP5-600
COVER, CLUTCH ARM
3
35600-HN7-003
SWITCH ASSY., NEUTRAL
30
41715-HP5-600
Кронштейн
31
42400-HR3-A21
DIFFERENTIAL ASSY.
32
42440-HN5-671
FOLLOWER SET, CAM
33
42451-HN7-003
SHIM A (1.3)
33
42452-HN7-003
SHIM B (1.4)
33
42453-HN7-003
SHIM C (1.5)
33
42454-HN7-003
SHIM D (1.6)
33
42455-HN7-003
SHIM E (1.7)
33
42456-HN7-003
SHIM F (1.8)
33
42457-HN7-003
SHIM G (1.9)
34
42461-HN5-671
SPRING, DIFFERENTIAL SIDE CONED
35
90101-HN8-000
Болт (8x17)
36
90101-HP5-600
Болт (6мм)
37
90106-MM9-000
BOLT, FR. FENDER FIXING
38
90109-371-000
Болт (8мм)
39
90102-HR6-B00
BOLT, FLANGE (10X96)
40
90133-HP5-600
BOLT, FLANGE (8X27)
41
90134-HP5-600
Болт (10x35)
42
90182-MB2-003
BOLT, FLANGE (10X66)
43
90244-HA0-000
NUT, LOCK (60MM)
44
90305-HC0-770
NUT, SELF-LOCK (10MM)
45
90443-KR0-000
WASHER, NEUTRAL SWITCH
46
90471-580-000
Прокладка
47
91012-KF0-000
CLIP, NEEDLE THRUST BEARING (12MM)
48
91052-HR3-W51
BEARING, RADIAL BALL (30X56X13) (ZHEJIANG)
49
91059-HL4-A01
BEARING, RADIAL BALL (60/32)
5
40215-HM7-000
SPRING, SHAFT
50
91056-HP5-601
BEARING, NEEDLE (12X18X12)
51
91252-HC5-003
OIL SEAL (22X48X7) (ARAI)
52
91252-HC5-003
OIL SEAL (22X48X7) (ARAI)
53
91254-HR3-A21
OIL SEAL (42X58X12)
54
91254-KS7-831
DUST SEAL (22X28X5)
55
91302-HM7-A00
BAND, BOOT (D27)
56
91302-HN5-671
SEAL, PROPELLER
57
91302-001-020
Колечко (30.8mm)
58
91303-HM7-A00
Соеденительное кольцо
6
40400-HR3-A20
SHAFT ASSY., FR. PROPELLER
60
91311-MB0-003
O-RING (18.5X2.4) (ARAI)
61
91351-HP5-601
GASKET, FR. FINAL CLUTCH COVER
62
91352-GAZ-930
O-RING (8.5X1.5)
63
91352-HR0-F01
O-RING (132X2)
64
94301-06100
Палец (6X10)
65
94510-32000
CIRCLIP, OUTER (32MM)
66
94520-58000
CIRCLIP, INNER (58MM)
67
95002-35000
CLIP, TUBE (C6.5)
68
95005-35001-30M
BULK HOSE, VACUUM (3.5X1000) (3.5X660)
69
95701-08025-00
Болт (8x25)
7
40402-HR3-A20
JOINT, FR. PROPELLER SHAFT
71
96100-60063-00
BEARING, RADIAL BALL (6006)
8
40420-HM7-A00
BOOT B, PROPELLER
9
40420-HP5-600
BOOT, PROPELLER SHAFT COVER
