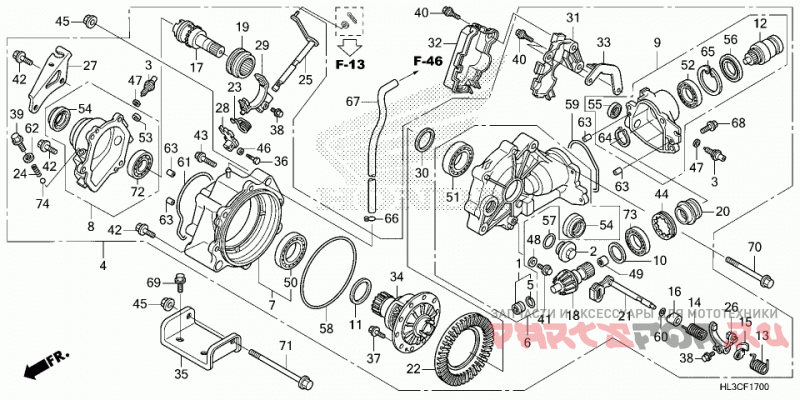

Передний редуктор

Honda SXS700M2D AC

Honda
#oem кодцена
1
06910-HN8-000
BEARING SET, NEEDLE
10
41447-HM8-000
SHIM A, PINION GEAR (1.64)
10
41448-HM8-000
SHIM B, PINION GEAR (1.70)
10
41449-HM8-000
SHIM C, PINION GEAR (1.76)
10
41451-HM8-000
SHIM D, PINION GEAR (1.82)
10
41452-HM8-000
SHIM E, PINION GEAR (1.88)
10
41453-HM8-000
SHIM F, PINION GEAR (1.94)
10
41454-HM8-000
SHIM G, PINION GEAR (2.00)
10
41455-HM8-000
SHIM H, PINION GEAR (2.06)
10
41456-HM8-000
SHIM I, PINION GEAR (2.12)
10
41457-HM8-000
SHIM J, PINION GEAR (2.18)
11
41450-HL1-A00
SHIM A, RING GEAR (0.64)
11
41451-HL1-A00
SHIM B, RING GEAR (0.70)
11
41452-HL1-A00
SHIM C, RING GEAR (0.76)
11
41453-HL1-A00
SHIM D, RING GEAR (0.82)
11
41454-HL1-A00
SHIM E, RING GEAR (0.88)
11
41455-HL1-A00
SHIM F, RING GEAR (0.94)
11
41456-HL1-A00
SHIM G, RING GEAR (1.00)
11
41457-HL1-A00
SHIM H, RING GEAR (1.06)
11
41458-HL1-A00
SHIM I, RING GEAR (1.12)
11
41459-HL1-A00
SHIM J, RING GEAR (1.18)
11
41460-HL1-A00
SHIM K, RING GEAR (1.24)
11
41461-HL1-A00
SHIM L, RING GEAR (1.30)
11
41462-HL1-A00
SHIM M, RING GEAR (1.36)
11
41463-HL1-A00
SHIM N, RING GEAR (1.42)
11
41464-HL1-A00
SHIM O, RING GEAR (1.48)
12
41502-HL3-A40
JOINT, FR. FINAL CLUTCH
13
41503-HP5-600
SPRING, FR. FINAL CLUTCH
14
41504-HP5-600
SPRING, FR. FINAL CLUTCH LOCK
15
41505-HP5-600
STOPPER, FR. FINAL CLUTCH
16
41506-HL1-A00
COLLAR, FR. FINAL CLUTCH
17
41511-HL1-A00
SHAFT, R. SIDE HALF
18
41521-HL1-A00
GEAR, FR. PINION (13T)
19
41521-PL9-000
SLEEVE, DIFFERENTIAL LOCK
2
12361-300-000
CAP, TAPPET ADJUSTING HOLE
20
41527-HP5-600
SLEEVE, FR. FINAL CLUTCH
21
41530-HL1-A00
SHAFT, FR. FINAL CLUTCH
22
41531-HL1-A00
GEAR, FR. RING (45T)
23
41534-HL1-A00
SPRING, DIFFERENTIAL LOCK FORK
24
41535-HL1-A00
SPRING, SELECTOR STOPPER
25
41540-HL1-A00
SHAFT, DIFFERENTIAL LOCK
26
41550-HP5-600
FORK, FR. FINAL CLUTCH
27
41553-HL1-A00
STAY, DIFFERENTIAL LOCK CABLE
28
41560-HL1-A00
STOPPER, DIFFERENTIAL LOCK SHAFT
29
41570-HL1-A00
FORK, DIFFERENTIAL LOCK
3
35600-HN7-003
SWITCH ASSY., NEUTRAL
30
41580-HL1-A00
SHIM A, RING GEAR (0.64)
30
41581-HL1-A00
SHIM B, RING GEAR (0.70)
30
41582-HL1-A00
SHIM C, RING GEAR (0.76)
30
41583-HL1-A00
SHIM D, RING GEAR (0.82)
30
41584-HL1-A00
SHIM E, RING GEAR (0.88)
30
41585-HL1-A00
SHIM F, RING GEAR (0.94)
30
41586-HL1-A00
SHIM G, RING GEAR (1.00)
30
41587-HL1-A00
SHIM H, RING GEAR (1.06)
30
41588-HL1-A00
SHIM I, RING GEAR (1.12)
30
41589-HL1-A00
SHIM J, RING GEAR (1.18)
30
41590-HL1-A00
SHIM K, RING GEAR (1.24)
30
41591-HL1-A00
SHIM L, RING GEAR (1.30)
30
41592-HL1-A00
SHIM M, RING GEAR (1.36)
30
41593-HL1-A00
SHIM N, RING GEAR (1.42)
30
41594-HL1-A00
SHIM O, RING GEAR (1.48)
30
41595-HL1-A00
SHIM P, RING GEAR (1.54)
30
41596-HL1-A00
SHIM Q, RING GEAR (1.60)
31
41711-HL1-A00
CASE, CLUTCH ARM
32
41712-HL1-A00
COVER, CLUTCH ARM
33
41715-HL1-A00
Кронштейн
34
42420-HL1-A00
CASE, FR. DIFFERENTIAL
35
50350-HL3-A00
BRACKET, FR. FINAL CASE
36
90029-PH8-000
Болт (6x16)
37
90101-HN2-680
BOLT, UBS (8X17)
38
90101-HP5-600
Болт (6мм)
39
90102-HL1-A00
SCREW, FIFTH & REVERSE SET BALL
4
41400-HL3-600
GEAR ASSY., FR. FINAL
40
90106-MM9-000
BOLT, FR. FENDER FIXING
41
90109-371-000
Болт (8мм)
42
90133-HP5-600
BOLT, FLANGE (8X27)
43
90134-HP5-600
Болт (10x35)
44
90242-MB0-000
NUT, LOCK (64MM)
45
90305-HC4-000
NUT, SELF-LOCK (12MM)
46
90442-GF6-010
WASHER, SEALING (7MM)
47
90443-KR0-000
WASHER, NEUTRAL SWITCH
48
90471-580-000
Прокладка
49
91056-HP5-601
BEARING, NEEDLE (12X18X12)
5
41405-HA7-670
Стопорное кольцо
50
91057-HL3-601
BEARING, RADIAL BALL (6009)
51
91057-HL4-A01
BEARING, RADIAL BALL (6008)
52
91059-HL4-A01
BEARING, RADIAL BALL (60/32)
53
91206-KV3-003
OIL SEAL (12X19X5) (ARAI)
54
91252-HL1-A01
OIL SEAL (35X56X8)
55
91253-HL1-A01
OIL SEAL (22X30X5)
56
91254-HR3-A21
OIL SEAL (42X58X12)
57
91302-001-020
Колечко (30.8mm)
58
91351-HL1-A01
O-RING (156.5X1.9)
59
91351-HP5-601
GASKET, FR. FINAL CLUTCH COVER
6
41411-HL3-600
CASE SUB-ASSY., FR. FINAL GEAR
60
91352-GAZ-930
O-RING (8.5X1.5)
61
91355-HL1-A01
GASKET, R. SIDE COVER
62
94109-12000
WASHER, DRAIN PLUG (12MM)
63
94301-06100
Палец (6X10)
64
94510-32000
CIRCLIP (OUTER) (32MM)
65
94520-58000
CIRCLIP, INNER (58MM)
66
95002-35000
CLIP, TUBE (C6.5)
67
95005-35001-30M
BULK HOSE, VACUUM (3.5X1000) (3.5X550)
68
95701-08025-00
Болт (8x25)
69
95701-10020-00
BOLT, FLANGE (10X20)
7
41412-HL3-600
COVER SUB-ASSY., FR. FINAL GEAR
70
95801-12110-08
BOLT, FLANGE (12X110)
71
95801-12150-00
BOLT, FLANGE (12X150)
72
96100-60073-00
Подшипник (6007)
73
96100-62060-00
BEARING, RADIAL BALL (6206)
74
96211-10000
BALL, STEEL (#10) (5/16)
8
41414-HL1-A00
COVER SUB-ASSY., R. FR. FINAL GEAR
9
41417-HL3-600
CASE SUB-ASSY., FR. CLUTCH
