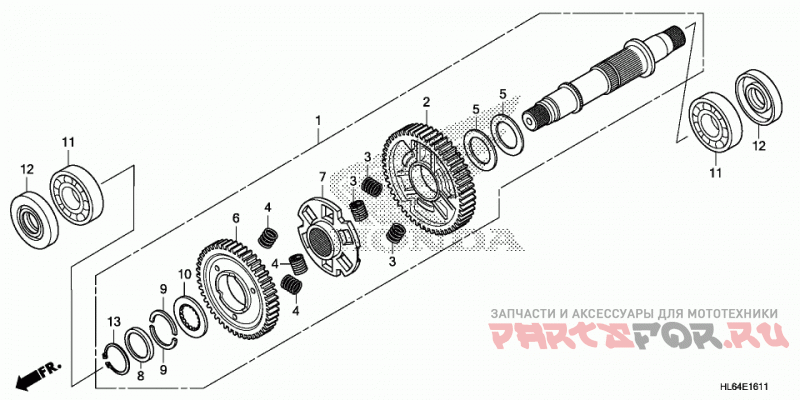

Final driven shaft для квадроциклов Honda SXS1000S2X 5AC (2021)

Москва и регионы России

#

oem код

название

цена

1

SHAFT ASSY., FINAL DRIVEN

10

WASHER, SPLINE (36X54X4)

11

BEARING, SPECIAL BALL (63/28)

12

OIL SEAL (30X50X8)

13

CIRCLIP (OUTER) (36MM)

2

GEAR, FINAL DRIVEN LOW (48T)

3

SPRING A, DAMPER

4

SPRING B, DAMPER

5

SPRING, FINAL DRIVEN DAMPER FRICTION

6

GEAR, FINAL DRIVEN HIGH (47T)

7

HOLDER, FINAL DRIVEN

8

RETAINER, FINAL DRIVEN SHAFT COTTER

9

COTTER, FINAL DRIVEN
