Бугель для квадроциклов Honda SXS700M4D 2A (2020)

Москва и регионы России

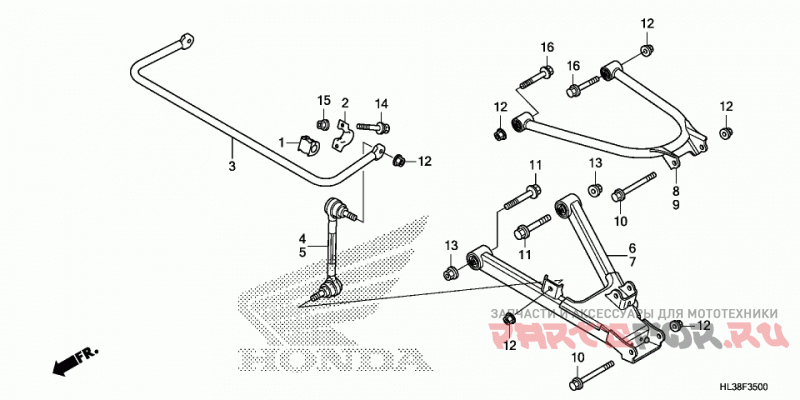

Бугель

Honda SXS700M4D 2A

Бугель

#

oem код

название

цена

1

BUSH, FR. STABILIZER HOLDER (FOR RR.)

BUSH, FR. STABILIZER HOLDER (FOR RR.)

10

BOLT, FLANGE (10X110)

BOLT, FLANGE (10X110)

11

BOLT, FLANGE (12X70)

BOLT, FLANGE (12X70)

12

NUT, SELF-LOCK (10MM)

NUT, SELF-LOCK (10MM)

13

NUT, SELF-LOCK (12MM)

NUT, SELF-LOCK (12MM)

14

BOLT-WASHER (8X50)

BOLT-WASHER (8X50)

15

Гайка

Гайка

16

Болт (10x62)

Болт (10x62)

16

Болт (10x65)

Болт (10x65)

2

BRACKET, FR. STABILIZER (FOR RR.)

BRACKET, FR. STABILIZER (FOR RR.)

3

SPRING, RR. STABILIZER (22MM)

SPRING, RR. STABILIZER (22MM)

4

LINK, R. RR. STABILIZER

LINK, R. RR. STABILIZER

5

LINK, L. RR. STABILIZER

LINK, L. RR. STABILIZER

6

ARM ASSY., R. RR. (LOWER)

ARM ASSY., R. RR. (LOWER)

7

ARM ASSY., L. RR. (LOWER)

ARM ASSY., L. RR. (LOWER)

8

ARM ASSY., R. RR. (UPPER)

ARM ASSY., R. RR. (UPPER)

9

ARM ASSY., L. RR. (UPPER)

ARM ASSY., L. RR. (UPPER)
