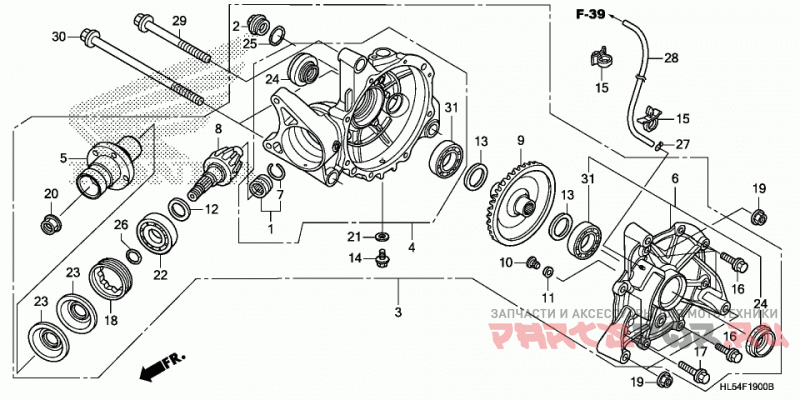

Редуктор

Honda SXS500M 2AC

Honda
#oem кодцена
1
06910-HR6-B00
BEARING SET, NEEDLE
10
41436-MB0-310
PIN, RING GEAR STOPPER
11
41437-MB0-310
SHIM A, STOPPER PIN (0.10)
11
41438-MB0-310
SHIM B, STOPPER PIN (0.15)
12
41450-MG9-000
SHIM A, PINION GEAR (1.32)
12
41451-MG9-000
SHIM B, PINION GEAR (1.38)
12
41452-MG9-000
SHIM C, PINION GEAR (1.44)
12
41453-MG9-000
SHIM D, PINION GEAR (1.50)
12
41454-MG9-000
SHIM E, PINION GEAR (1.56)
12
41455-MG9-000
SHIM F, PINION GEAR (1.62)
12
41456-MG9-000
SHIM G, PINION GEAR (1.68)
13
41540-HA0-000
SPACER A, RING GEAR (1.82)
13
41541-HA0-000
SPACER B, RING GEAR (1.88)
13
41542-HA0-000
SPACER C, RING GEAR (1.94)
13
41543-HA0-000
SPACER D, RING GEAR (2.00)
13
41544-HA0-000
SPACER E, RING GEAR (2.06)
13
41545-HA0-000
SPACER F, RING GEAR (2.12)
13
41546-HA0-000
SPACER G, RING GEAR (2.18)
13
41547-HA0-000
SPACER H, RING GEAR (2.24)
13
41548-HA0-000
SPACER I, RING GEAR (2.30)
14
90109-371-000
Болт (8мм)
15
90115-HN8-000
CLIP, FUEL BREATHER TUBE
16
90133-HP5-600
BOLT, FLANGE (8X27)
17
90134-HP5-600
Болт (10x35)
18
90242-HL1-A00
NUT, LOCK (72MM)
19
90305-HC0-770
NUT, SELF-LOCK (10MM)
2
12361-300-000
CAP, TAPPET ADJUSTING HOLE
20
90381-MT3-000
NUT, HEX. (16MM)
21
90471-580-000
Прокладка
22
91061-MT3-003
BEARING, RADIAL BALL (QJ3/28V1)
23
91251-HL3-A01
OIL SEAL (36X75X8)
24
91252-HL3-A01
OIL SEAL (28X55X7)
25
91302-001-020
Колечко (30.8mm)
26
91355-759-003
Колечко (21.8x2.4)
27
95002-02650
Зажим
28
95005-35008-10M
BULK HOSE, VACUUM (3.5X8000) (3.5X700)
29
95801-10095-00
BOLT, FLANGE (10X95)
3
41300-HL5-A00
GEAR ASSY., RR. FINAL
30
95801-10160-00
BOLT, FLANGE (10X160)
31
96100-60073-00
Подшипник (6007)
4
41311-HL5-A00
CASE SUB-ASSY., RR. FINAL GEAR
5
41315-HL3-A00
JOINT, RR. PINION
6
41331-HL3-A00
COVER SUB-ASSY., RR. FINAL GEAR
7
41405-HA7-670
Стопорное кольцо
8
41421-HL5-A00
GEAR, RR. PINION (21T)
9
41431-HL5-A00
GEAR, RR. RING (53T)
