Front cushion (2) для квадроциклов Honda SXS1000S2X A (2020)

Москва и регионы России

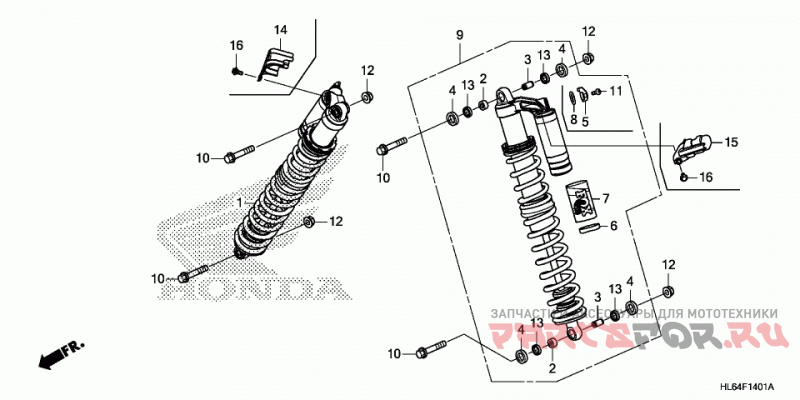

Front cushion (2)

Honda SXS1000S2X A

Front cushion (2)

#

oem код

название

цена

1

51400-HL6-A01ZA

CUSHION ASSY., R. FR. (TYPE1) (FOX)

CUSHION ASSY., R. FR. (TYPE1) (FOX)

10

BOLT, FLANGE (12X57)

BOLT, FLANGE (12X57)

11

BOLT, TORX

BOLT, TORX

12

NUT, SELF-LOCK (12MM)

NUT, SELF-LOCK (12MM)

13

Уплотнение

Уплотнение

2

BUSHING, EYELET

BUSHING, EYELET

3

SLEEVE, EYELET

SLEEVE, EYELET

4

SPACER, EYELET

SPACER, EYELET

5

KNOB, DAMPING ADJUST

KNOB, DAMPING ADJUST

6

51427-HL6-A01ZA

DECAL, BAND (TYPE1)

DECAL, BAND (TYPE1)

7

51428-HL6-A01ZA

DECAL, RESERVOIR (TYPE1)

DECAL, RESERVOIR (TYPE1)

8

DECAL, BASE VALVE

DECAL, BASE VALVE

9

51500-HL6-A01ZA

CUSHION ASSY., L. FR. (TYPE1) (FOX)

CUSHION ASSY., L. FR. (TYPE1) (FOX)
