Рычаги,тросы и рулевые переключатели для квадроциклов Honda TRX90X (2019)

Москва и регионы России

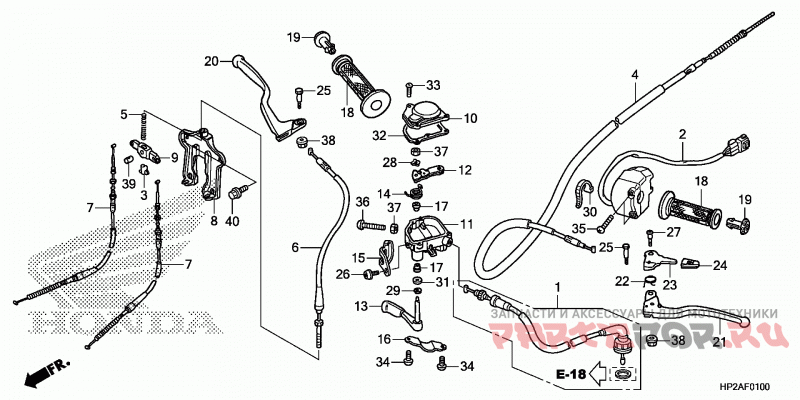

Рычаги,тросы и рулевые переключатели

Honda TRX90X

Рычаги,тросы и рулевые переключатели

#

oem код

название

цена

1

Трос газа

Трос газа

2

SWITCH ASSY., STARTER STOP

SWITCH ASSY., STARTER STOP

3

NUT, BRAKE ADJUSTING

NUT, BRAKE ADJUSTING

4

CABLE, HAND BRAKE

CABLE, HAND BRAKE

5

SPRING B, BRAKE ROD

SPRING B, BRAKE ROD

6

CABLE, FR. BRAKE (1ST)

CABLE, FR. BRAKE (1ST)

7

CABLE, FR. BRAKE (2ND)

CABLE, FR. BRAKE (2ND)

8

BODY, EQUALIZER

BODY, EQUALIZER

9

PLATE, EQUALIZER

PLATE, EQUALIZER

10

COVER, THROTTLE CASE

COVER, THROTTLE CASE

11

CASE, THROTTLE LEVER

CASE, THROTTLE LEVER

12

ARM, THROTTLE

ARM, THROTTLE

13

LEVER, THROTTLE (COO)

LEVER, THROTTLE (COO)

13

Рычаг газа

Рычаг газа

14

SPRING, THROTTLE RETURN

SPRING, THROTTLE RETURN

15

STAY, ADJUSTER

STAY, ADJUSTER

16

HOLDER, THROTTLE CASE

HOLDER, THROTTLE CASE

17

BUSH, THROTTLE PIVOT

BUSH, THROTTLE PIVOT

18

GRIP, L. HANDLE (COO)

GRIP, L. HANDLE (COO)

19

GUARD, HANDLE END

GUARD, HANDLE END

20

LEVER, R. HANDLEBAR (COO)

LEVER, R. HANDLEBAR (COO)

20

Рычаг

Рычаг

21

LEVER, L. HANDLEBAR (COO)

LEVER, L. HANDLEBAR (COO)

22

SPRING, PARKING BRAKE LEVER

SPRING, PARKING BRAKE LEVER

23

LEVER, PARKING BRAKE LOCK

LEVER, PARKING BRAKE LOCK

24

CAP, PARKING LEVER

CAP, PARKING LEVER

25

BOLT, HANDLE LEVER PIVOT

BOLT, HANDLE LEVER PIVOT

26

SCREW, SPECIAL (5X10)

SCREW, SPECIAL (5X10)

27

SCREW, PARKING LEVER PIVOT

SCREW, PARKING LEVER PIVOT

28

WASHER, LOCK (6MM)

WASHER, LOCK (6MM)

29

WASHER (9X20)

WASHER (9X20)

30

Хомут

Хомут

31

DUST SEAL (9X16X5) (ARAI)

DUST SEAL (9X16X5) (ARAI)

32

GASKET, THROTTLE CASE

GASKET, THROTTLE CASE

33

Винт (4x16)

Винт (4x16)

34

SCREW, PAN (5X14)

SCREW, PAN (5X14)

35

Винт (5x25)

Винт (5x25)

36

SCREW, PAN (6X35)

SCREW, PAN (6X35)

37

Гайка

Гайка

38

Гайка (6mm)

Гайка (6mm)

39

Соединитель

Соединитель

40

Болт (6x12)

Болт (6x12)
