Рулевой вал для квадроциклов Honda TRX680FA5 (2019)

Москва и регионы России

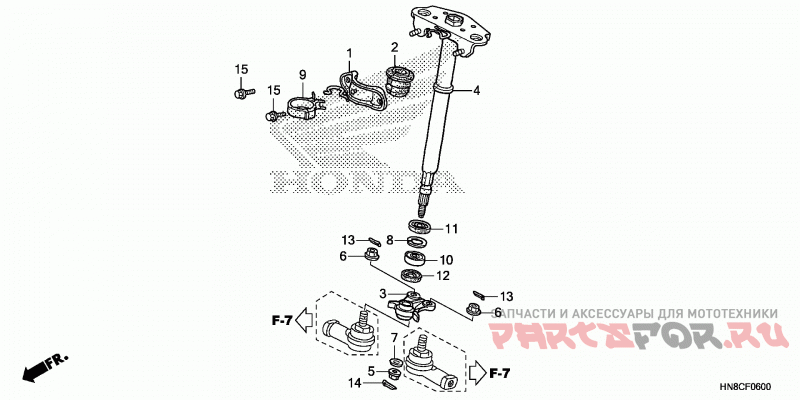

Рулевой вал

Honda TRX680FA5

Рулевой вал

#

oem код

название

цена

1

HOLDER, STEERING SHAFT

HOLDER, STEERING SHAFT

2

BUSH, STEERING

BUSH, STEERING

3

ARM, STEERING

ARM, STEERING

4

SHAFT, STEERING

SHAFT, STEERING

5

NUT, SELF-LOCK (14MM)

NUT, SELF-LOCK (14MM)

6

NUT, SELF-LOCK (12MM)

NUT, SELF-LOCK (12MM)

7

WASHER, THRUST (14MM)

WASHER, THRUST (14MM)

8

CIRCLIP (INNER) (44MM)

CIRCLIP (INNER) (44MM)

9

CLIP, CABLE (30MM)

CLIP, CABLE (30MM)

10

BEARING, RADIAL BALL (60/22)

BEARING, RADIAL BALL (60/22)

11

DUST SEAL (30X44X9)

DUST SEAL (30X44X9)

12

DUST SEAL (27X37X5)

DUST SEAL (27X37X5)

13

PIN, SPLIT (2.0X22)

PIN, SPLIT (2.0X22)

13

PIN, SPLIT (2.0X25)

PIN, SPLIT (2.0X25)

13

PIN, SPLIT (2.0X28)

PIN, SPLIT (2.0X28)

13

PIN, COTTER (2.0X32)

PIN, COTTER (2.0X32)

14

Зажим (3.0x25)

Зажим (3.0x25)

14

PIN, SPLIT (3.0X30)

PIN, SPLIT (3.0X30)

14

PIN, SPLIT (3.0)

PIN, SPLIT (3.0)

15

Болт (8x16)

Болт (8x16)
