Рычаги,тросы и рулевые переключатели для квадроциклов Honda TRX500FM1 (2019)

Москва и регионы России

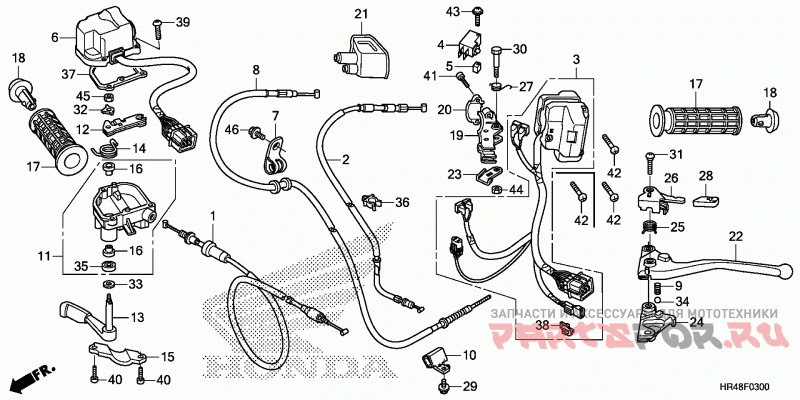

Рычаги,тросы и рулевые переключатели

Honda TRX500FM1

Рычаги,тросы и рулевые переключатели

#

oem код

название

цена

1

Трос газа

Трос газа

2

CABLE, REVERSE ASSIST

CABLE, REVERSE ASSIST

3

SWITCH ASSY., ELECTRIC SHIFT

SWITCH ASSY., ELECTRIC SHIFT

3

SWITCH ASSY., LIGHTING & ENGINE STARTER

SWITCH ASSY., LIGHTING & ENGINE STARTER

4

SWITCH ASSY., FR. STOP (COO)

SWITCH ASSY., FR. STOP (COO)

5

COLLAR, STOP SWITCH

COLLAR, STOP SWITCH

6

SWITCH ASSY., DIFFERENTIAL LOCK

SWITCH ASSY., DIFFERENTIAL LOCK

7

Зажим

Зажим

8

CABLE, HAND BRAKE

CABLE, HAND BRAKE

9

Пружина

Пружина

10

Направляющая кабеля

Направляющая кабеля

11

CASE ASSY., THROTTLE LEVER

CASE ASSY., THROTTLE LEVER

12

ARM, THROTTLE

ARM, THROTTLE

13

LEVER, THROTTLE (COO)

LEVER, THROTTLE (COO)

14

SPRING, THROTTLE RETURN

SPRING, THROTTLE RETURN

15

HOLDER, THROTTLE CASE

HOLDER, THROTTLE CASE

16

BUSH, THROTTLE PIVOT

BUSH, THROTTLE PIVOT

17

GRIP, HANDLE

GRIP, HANDLE

18

GUARD, HANDLE END

GUARD, HANDLE END

19

BRACKET, BRAKE LEVER

BRACKET, BRAKE LEVER

19

BRACKET, BRAKE LEVER

BRACKET, BRAKE LEVER

20

HOLDER, LEVER BRACKET

HOLDER, LEVER BRACKET

21

COVER, L. HANDLE

COVER, L. HANDLE

22

LEVER, L. HANDLEBAR (COO)

LEVER, L. HANDLEBAR (COO)

23

HOLDER, STOP SWITCH SUB CORD

HOLDER, STOP SWITCH SUB CORD

24

ARM, REVERSE ASSISTANT

ARM, REVERSE ASSISTANT

25

SPRING, PARKING LEVER (A)

SPRING, PARKING LEVER (A)

26

LEVER, PARKING BRAKE LOCK

LEVER, PARKING BRAKE LOCK

27

SPRING, PARKING LEVER RETURN

SPRING, PARKING LEVER RETURN

27

SPRING, LEVER RETURN

SPRING, LEVER RETURN

28

CAP, PARKING LEVER

CAP, PARKING LEVER

29

Болт (6мм)

Болт (6мм)

30

BOLT, HANDLE LEVER PIVOT

BOLT, HANDLE LEVER PIVOT

31

SCREW, PARKING LEVER PIVOT

SCREW, PARKING LEVER PIVOT

32

WASHER, LOCK (6MM)

WASHER, LOCK (6MM)

33

WASHER (9X20)

WASHER (9X20)

34

BALL, STEEL (#6) (3/16)

BALL, STEEL (#6) (3/16)

35

DUST SEAL (9X16X5) (ARAI)

DUST SEAL (9X16X5) (ARAI)

36

CLIP, TUBE (3.5)

CLIP, TUBE (3.5)

37

GASKET, THROTTLE CASE

GASKET, THROTTLE CASE

38

CLIP, CONNECTOR (DARK BROWN)

CLIP, CONNECTOR (DARK BROWN)

39

Винт (4x16)

Винт (4x16)

40

SCREW, PAN (5X14)

SCREW, PAN (5X14)

41

Винт (5x18)

Винт (5x18)

42

Винт (5x28)

Винт (5x28)

43

SCREW-WASHER (4X20)

SCREW-WASHER (4X20)

44

Гайка

Гайка

45

Гайка

Гайка

46

Болт (6x12)

Болт (6x12)
