Steering gear box@tie rod для квадроциклов Honda SXS500M (2019)

Москва и регионы России

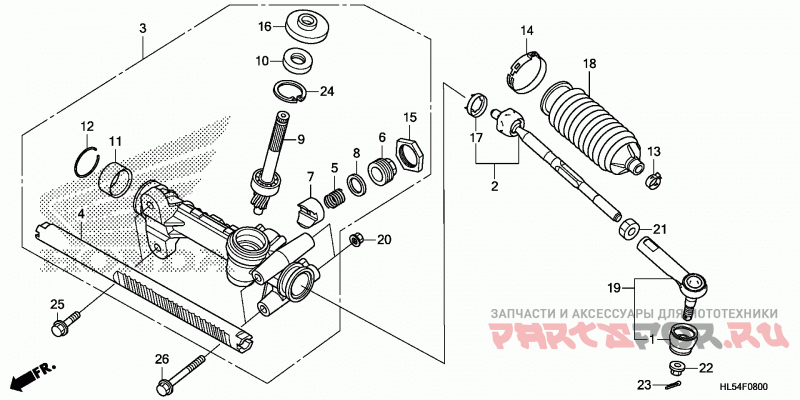

Steering gear box@tie rod

Honda SXS500M

Steering gear box@tie rod

#

oem код

название

цена

1

BOOT, TIE ROD END (MUSASHI)

BOOT, TIE ROD END (MUSASHI)

2

END SET, TIE ROD

END SET, TIE ROD

3

BOX, STEERING GEAR

BOX, STEERING GEAR

4

RACK, STEERING

RACK, STEERING

5

SPRING, RACK GUIDE PRESSURE

SPRING, RACK GUIDE PRESSURE

6

SCREW, RACK GUIDE

SCREW, RACK GUIDE

7

GUIDE, STEERING RACK

GUIDE, STEERING RACK

8

WASHER, DISK

WASHER, DISK

9

PINION, STEERING

PINION, STEERING

10

DUST SEAL, STEERING PINION (ARAI)

DUST SEAL, STEERING PINION (ARAI)

11

BUSH, RACK END

BUSH, RACK END

12

Кольцо

Кольцо

13

BAND A, BELLOWS

BAND A, BELLOWS

14

BAND B, BELLOWS

BAND B, BELLOWS

15

NUT, RACK SCREW LOCK

NUT, RACK SCREW LOCK

16

COVER, PINION DUST

COVER, PINION DUST

17

WASHER, TIE ROD LOCK

WASHER, TIE ROD LOCK

18

BOOT A, TIE ROD

BOOT A, TIE ROD

19

END, TIE ROD

END, TIE ROD

20

NUT, SELF-LOCK (10MM)

NUT, SELF-LOCK (10MM)

21

NUT, HEX. (14MM)

NUT, HEX. (14MM)

22

Гайка (12mm)

Гайка (12mm)

23

PIN, SPLIT (2.5X20)

PIN, SPLIT (2.5X20)

23

PIN, SPLIT (2.5X25)

PIN, SPLIT (2.5X25)

24

CIRCLIP (INNER) (35MM)

CIRCLIP (INNER) (35MM)

25

Болт (10x32)

Болт (10x32)

26

BOLT, FLANGE (10X105)

BOLT, FLANGE (10X105)
