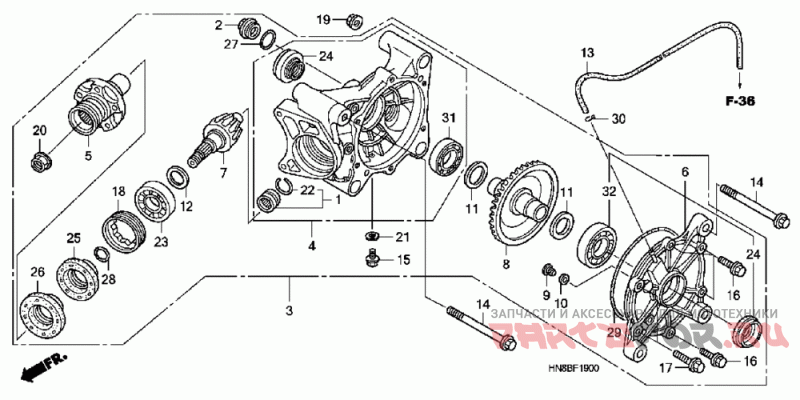

Редуктор

Honda TRX680FA

Honda
#oem кодцена
01
06911-HN8-000
Bearing Set, Needle
02
12361-035-000
Крышка
02
12361-300-000
Крышка
02
12361-300-000
Крышка
02
12361-300-000
Крышка
03
41300-HN8-B40
Gear, Rr. Final
04
41311-HN8-000
Case Sub-assy., Rr.
05
41315-HN8-A40
Joint, Rr. Pinion
06
41331-HN8-010
Cvr Sub Rr G/case
07
41421-HN8-A40
Gear, Rr. (13t)
08
41431-HN8-000
Gear, Rr. Ring (41t)
09
41436-MB0-310
Штифт
11
41447-HM8-000
Shim A, Pinion Gear
11
41448-HM8-000
Shim B, Pinion Gear
11
41449-HM8-000
Shim C, Pinion Gear
11
41451-HM8-000
Shim D, Pinion Gear
11
41452-HM8-000
Shim E, Pinion Gear
11
41453-HM8-000
Shim F, Pinion Gear
11
41454-HM8-000
Shim G, Pinion Gear
11
41455-HM8-000
Shim H, Pinion Gear
11
41456-HM8-000
Shim I, Pinion Gear
11
41457-HM8-000
Shim J, Pinion Gear
12
41450-MG8-000
Shim A (1.82)
12
41451-MG8-000
Shim B (1.88)
12
41452-MG8-000
Shim C (1.94)
12
41453-MG8-000
Shim D (2.00)
12
41454-MG8-000
Shim E (2.06)
12
41455-MG8-000
Shim F (2.12)
12
41456-MG8-000
Shim G (2.18)
13
43133-HN8-000
Tube (3.5x1450)
14
90009-371-015
Bolt, Flg (10x120)
15
90109-371-000
Болт (8мм)
16
90133-HP5-600
Bolt, Flange (8x27)
17
90134-HP5-600
Болт (10x35)
18
90242-MB0-000
Nut, Lock (64mm)
19
90305-HC0-770
Гайка
20
90381-HA0-000
Nut, Hex. (16mm)
21
90471-580-000
Прокладка
22
91012-KF0-000
Clip (12mm)
23
91061-MB0-005
Подшипник (6305)
23
91061-MB0-005
Подшипник (6305)
24
91203-HN8-003
Oil Seal (28x55x7)
25
91251-HN8-003
Oil Seal (33x70x8)
26
91252-HN8-003
Oil Seal (33x75x8)
27
91302-001-020
Колечко (30.8mm)
28
91312-KE7-003
Сальник (19х3)
29
91353-HN8-003
O-ring (139.5x2)
30
95002-35000
Clip, Tube (c6.5)
31
96100-60063-00
Bearing (6006)
32
96100-62063-00
Bearing (6206)
10
41437-MB0-310
Shim A (0.10)
10
41438-MB0-310
Shim B (0.15)
