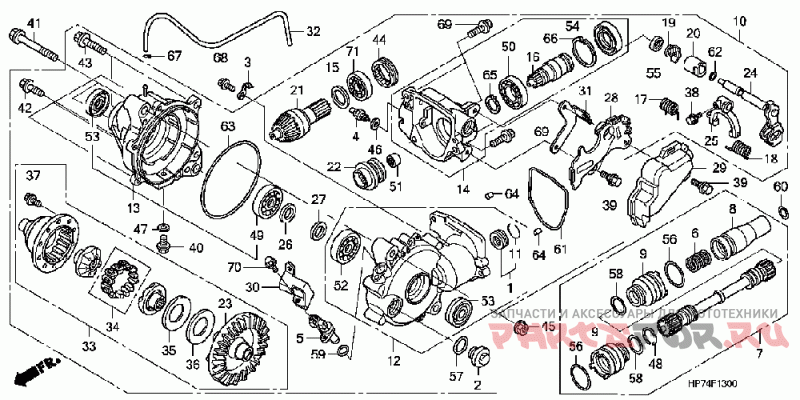

Передний редуктор

Honda TRX420FA

Honda
#oem кодцена
01
06910-HP5-600
Bearing Set, Needle
02
12361-035-000
Крышка
02
12361-300-000
Крышка
02
12361-300-000
Крышка
02
12361-300-000
Крышка
03
32921-HN5-670
Зажим
04
35600-HN7-003
Переключатель, нейтрали
05
37700-HP5-601
Датчик скорости
06
40215-HM7-000
Spring, Shaft
07
40400-HP5-600
Shaft, Fr. Propeller
08
40402-HP5-600
Joint, Fr.
09
40420-HP5-600
Чехол защитный
10
41400-HP7-A00
Gear, Fr. Final
11
41405-HA7-670
Стопорное кольцо
12
41411-HP7-A00
Case Sub-assy., Fr.
13
41412-HP7-A00
Cover Sub-assy., Fr.
14
41413-HP5-600
Case Sub-assy., Fr.
15
41447-HM8-000
Shim A, Pinion Gear
15
41448-HM8-000
Shim B, Pinion Gear
15
41449-HM8-000
Shim C, Pinion Gear
15
41451-HM8-000
Shim D, Pinion Gear
15
41452-HM8-000
Shim E, Pinion Gear
15
41453-HM8-000
Shim F, Pinion Gear
15
41454-HM8-000
Shim G, Pinion Gear
15
41455-HM8-000
Shim H, Pinion Gear
15
41456-HM8-000
Shim I, Pinion Gear
15
41457-HM8-000
Shim J, Pinion Gear
15
41458-HN0-670
Shim K (2.24)
15
41459-HN0-670
Shim L (2.30)
15
41461-HN0-670
Shim M (2.36)
15
41462-HN0-670
Shim N (2.42)
15
41463-HN0-670
Shim O (2.48)
16
41502-HP5-600
Joint, Fr.
17
41503-HP5-600
Пружина передн.
18
41504-HP5-600
Пружина передн.
19
41505-HP5-600
Стоппор
20
41506-HP5-600
Втулка
21
41521-HP7-A00
Gear, Fr. (13t)
22
41527-HP5-600
Sleeve, Fr.
23
41531-HP5-600
Gear, Fr. Ring (42t)
24
41540-HP5-600
Shaft, Fr.
25
41550-HP5-600
Fork, Fr.
26
41631-HC5-000
Shim A (0.50)
26
41632-HC5-000
Shim B (0.55)
26
41633-HC5-000
Shim C (0.60)
26
41634-HC5-000
Shim D (0.65)
26
41635-HC5-000
Shim E (0.70)
26
41636-HC5-000
Shim F (0.75)
26
41637-HC5-000
Shim G (0.80)
26
41638-HC5-000
Shim H (0.85)
26
41639-HC5-000
Shim I (0.90)
26
41640-HC5-000
Shim J (0.95)
26
41641-HC5-000
Shim K (1.00)
26
41642-HC5-000
Shim L (1.05)
26
41643-HC5-000
Shim M (1.10)
26
41644-HC5-000
Shim N (1.15)
26
41645-HC5-000
Shim O (1.20)
26
41646-HC5-000
Shim P (1.25)
26
41647-HC5-000
Shim Q (1.30)
26
41648-HC5-000
Shim R (1.35)
26
41649-HC5-000
Shim S (1.40)
26
41650-HC5-000
Shim T (1.45)
26
41651-HC5-000
Shim U (1.50)
26
41652-HC5-000
Shim V (1.55)
26
41653-HC5-000
Shim W (1.60)
27
41631-HP5-600
Shim A (os 0.50)
27
41632-HP5-600
Shim B (0.55)
27
41633-HP5-600
Shim C (0.60)
27
41634-HP5-600
Shim D (0.65)
27
41635-HP5-600
Shim E (0.70)
27
41636-HP5-600
Shim F (0.75)
27
41637-HP5-600
Shim G (0.80)
27
41638-HP5-600
Shim H (0.85)
27
41639-HP5-600
Shim I (0.90)
27
41640-HP5-600
Shim J (0.95)
27
41641-HP5-600
Shim K (1.00)
27
41642-HP5-600
Shim L (1.05)
27
41643-HP5-600
Shim M (1.10)
27
41644-HP5-600
Shim N (1.15)
27
41645-HP5-600
Shim O (1.20)
27
41646-HP5-600
Shim P (1.25)
27
41647-HP5-600
Shim Q (1.30)
27
41648-HP5-600
Shim R (1.35)
27
41649-HP5-600
Shim S (1.40)
27
41650-HP5-600
Shim T (1.45)
27
41651-HP5-600
Shim U (1.50)
27
41652-HP5-600
Shim V (1.55)
27
41653-HP5-600
Shim W (1.60)
28
41711-HP5-600
Case, Clutch Arm
29
41712-HP5-600
Cover, Clutch Arm
30
41713-HP7-A00
Cover, Fr.
31
41715-HP5-600
Кронштейн
32
41811-HP5-600
Tube (3.5x1090)
33
42400-HP5-601
Differential Assy.
34
42440-HN5-671
Follower Set, Cam
35
42451-HN7-003
Shim A (1.3)
35
42452-HN7-003
Shim B (1.4)
35
42453-HN7-003
Shim C (1.5)
35
42454-HN7-003
Shim D (1.6)
35
42455-HN7-003
Shim E (1.7)
35
42456-HN7-003
Shim F (1.8)
35
42457-HN7-003
Shim G (1.9)
36
42461-HN5-671
Пружина
37
90101-HN8-000
Bolt (8x17) (14.9)
38
90101-HP5-600
Болт (6мм)
39
90106-MM9-000
Bolt, Fr.
40
90109-371-000
Болт (8мм)
41
90129-KF0-000
Bolt, Flange (10x77)
42
90133-HP5-600
Bolt, Flange (8x27)
43
90134-HP5-600
Болт (10x35)
44
90242-MB0-000
Nut, Lock (64mm)
45
90305-HC0-770
Гайка
46
90443-KR0-000
Шайба
47
90471-580-000
Прокладка
48
91012-KF0-000
Clip (12mm)
49
91052-HC5-004
Bearing (29x52x12)
50
91055-HP5-601
Bearing (32x58x13)
51
91056-HP5-601
Bearing (12x18x12)
52
91062-HA7-672
Bearing (32x58x13)
53
91252-HC5-003
Dust Seal (22x48x7)
54
91252-HP5-601
Oil Seal (42x58x8)
55
91254-KS7-831
Dust Seal (22x28x5)
56
91302-HM7-A00
Band, Boot (d27)
57
91302-001-020
Колечко (30.8mm)
58
91303-HM7-A00
Соеденительное кольцо
59
91356-MA6-005
Кольцо (14.8x2.4)
59
91356-MA6-005
Кольцо (14.8x2.4)
60
91311-MB0-003
O-ring (18.5x2.4)
61
91351-HP5-601
Прокладка перед.
62
91352-GAZ-930
O-ring (8.5x1.5)
63
91352-HP5-601
O-ring (136x2)
64
94301-06100
Палец (6X10)
65
94510-32000
стопорное кольцо (32mm)
66
94520-58000
Circlip (58mm)
67
95002-35000
Clip, Tube (c6.5)
68
95701-06012-00
Болт (6X12)
69
95701-08025-00
Болт (8x25)
70
96001-06016-07
Болт (6x16)
71
96100-62060-00
Bearing (6206)
16
41502-HL1-A01
Joint, Fr.
