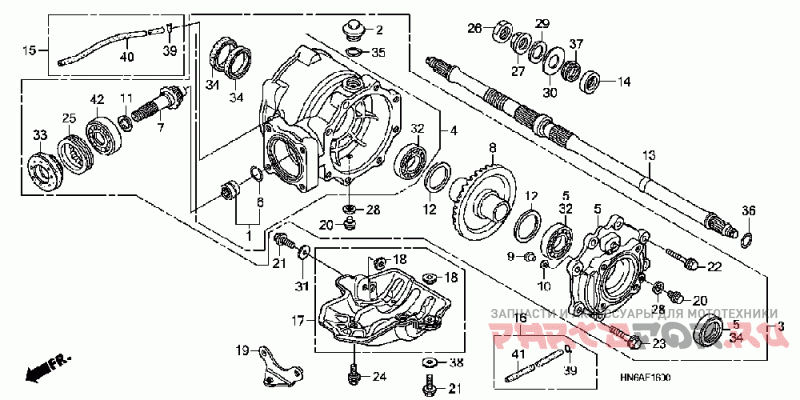

Редуктор задний

Honda TRX250X

Honda
#oem кодцена
01
06910-HM4-850
Bearing Set, Needle
02
12361-035-000
Крышка
02
12361-300-000
Крышка
02
12361-300-000
Крышка
02
12361-300-000
Крышка
03
41300-HN6-A50
Gear, Rr. Final
04
41311-HM8-000
Case Set, Final
05
41320-HN6-020
Cover Set, Gear Case
06
41405-HA7-670
Стопорное кольцо
07
41421-HN5-670
Gear, Pinion
08
41431-HM8-000
Gear, Ring
09
41436-MB0-310
Штифт
11
41447-HM8-000
Shim A, Pinion Gear
11
41448-HM8-000
Shim B, Pinion Gear
11
41449-HM8-000
Shim C, Pinion Gear
11
41451-HM8-000
Shim D, Pinion Gear
11
41452-HM8-000
Shim E, Pinion Gear
11
41453-HM8-000
Shim F, Pinion Gear
11
41454-HM8-000
Shim G, Pinion Gear
11
41455-HM8-000
Shim H, Pinion Gear
11
41456-HM8-000
Shim I, Pinion Gear
11
41457-HM8-000
Shim J, Pinion Gear
12
41540-HC4-000
Spacer A (1.26)
12
41541-HC4-000
Spacer B (1.32)
12
41542-HC4-000
Spacer C (1.38)
12
41543-HC4-000
Spacer D (1.44)
12
41544-HC4-000
Spacer E (1.50)
12
41545-HC4-000
Spacer F (1.56)
12
41546-HC4-000
Spacer G (1.62)
12
41547-HC4-000
Spacer H (1.68)
12
41548-HC4-000
Spacer I (1.74)
12
41549-HC4-000
Spacer J (1.80)
12
41550-HC4-000
Spacer K (1.86)
13
42311-HN6-A30
Shaft, Rr. Axle
14
42625-HM8-000
Втулка
15
43122-HN6-A30
Tube Assy., Rr.
16
44123-HN6-A30
Tube, Rr. Breather
17
50355-HM8-B40
Plate, Skid
18
50358-HM8-B40
Collar, Skid Plate
19
52190-HN6-000
Stay, Skid Plate
20
90109-371-000
Болт (8мм)
21
90131-GW0-750
Болт (8х20)
22
90133-HP5-600
Bolt, Flange (8x27)
23
90134-HP5-600
Болт (10x35)
24
90186-HM8-B40
Болт (8х20)
25
90242-MB0-000
Nut, Lock (64mm)
26
90307-HM5-930
Nut, Rr. Axle
27
90308-HM5-930
Nut A, Rr. Axle
28
90471-580-000
Прокладка
29
90481-HC4-000
Washer, Taper
30
90501-HM8-000
Washer (32x60x1.5)
31
90504-MA6-000
Washer (8.5x26)
32
91051-HC4-003
Bearing (43x68x13)
33
91251-HM8-003
Oil Seal (34x70x11)
34
91271-HC4-004
Oil Seal (42x51x7)
35
91302-001-020
Колечко (30.8mm)
36
91301-401-000
O-ring (29.5x3)
36
91301-401-000
O-ring (29.5x3)
36
91301-401-000
O-ring (29.5x3)
37
91351-HB3-004
Кольцо уплотнительное
38
94102-08800
Шайба (8mm)
39
95002-35000
Clip, Tube (c6.5)
40
95005-35001-30M
Bulk Hose (3.5x1000) Oem Cut Size: (3.5x815)
41
95005-35001-30M
Bulk Hose (3.5x1000) Oem Cut Size: (3.5x915)
42
96100-62060-00
Bearing (6206)
10
41437-MB0-310
Shim A (0.10)
10
41438-MB0-310
Shim B (0.15)
