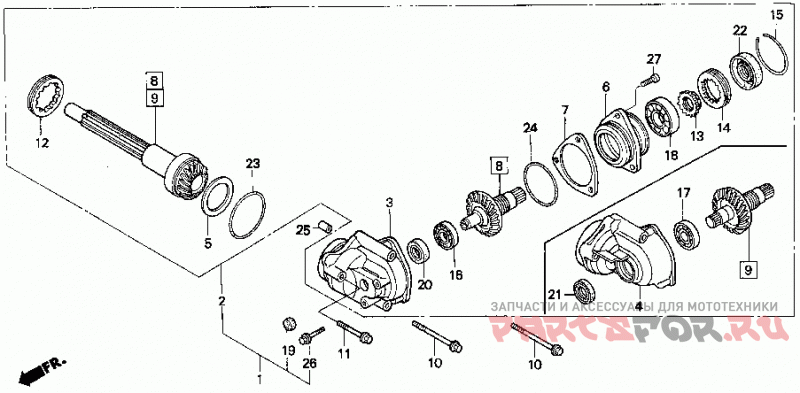

Side gear case

Honda TRX300FW

Honda
#oem кодцена
02
21100-HC5-000
Case, Side Gear
04
21200-HC5-000
Case, Side Gear
05
21331-MF5-000
Shim (0.80)
05
21332-MF5-000
Shim (0.85)
05
21333-MF5-000
Shim (0.90)
05
21334-MF5-000
Shim (0.95)
05
21335-MF5-000
Shim (1.00)
05
21336-MF5-000
Shim (1.05)
05
21337-MF5-000
Shim (1.10)
06
21371-HC4-000
Hldr, Cross Bearing
07
21381-HA0-000
Shim (0.20)
07
21382-HA0-000
Shim (0.25)
07
21383-HA0-000
Shim (0.30)
07
21384-HA0-000
Shim (0.35)
07
21385-HA0-000
Shim (0.40)
07
21386-HA0-000
Shim (0.45)
07
21386-HA0-000
Shim (0.45)
07
21387-HA0-000
Shim (0.50)
07
21387-HA0-000
Shim (0.50)
09
23200-HC5-305
Shaft Set, Cross
09
23200-HC5-305
Shaft Set, Cross
10
90004-HC4-000
Bolt, Ubs (8x100)
10
90004-HC4-000
Bolt, Ubs (8x100)
11
90065-HA8-680
Bolt, Ubs (8x45)
11
90065-HA8-680
Bolt, Ubs (8x45)
12
90242-MB0-000
Nut, Lock (64mm)
12
90242-MB0-000
Nut, Lock (64mm)
13
90243-ME5-000
Nut, Lock (28mm)
13
90243-ME5-000
Nut, Lock (28mm)
14
90244-MF5-000
Nut, Lock (60mm)
14
90244-MF5-000
Nut, Lock (60mm)
15
90601-HA0-000
Стопорная пружина сальника
15
90601-HA0-000
Стопорная пружина сальника
17
91004-HA7-672
Bearing (6004r)
17
91004-HA7-672
Bearing (6004r)
18
91015-HC4-003
Bearing (62/28)
18
91015-HC4-003
Bearing (62/28)
21
91201-HC5-003
Oil Seal (24x34x7)
21
91201-HC5-003
Oil Seal (24x34x7)
22
91205-HM7-003
Oil Seal (25x61x8.5)
22
91205-HM7-003
Oil Seal (25x61x8.5)
22
91205-ME5-003
Oil Seal (25x61x8.5)
22
91205-ME5-003
Oil Seal (25x61x8.5)
23
91305-MF5-003
O-ring (72x1.9)
23
91305-MF5-003
O-ring (72x1.9)
24
91362-461-000
O-ring (70x3.0)
24
91362-461-000
O-ring (70x3.0)
25
94303-10160
Палец (10x16)
25
94303-10160
Палец (10x16)
27
96600-08022-10
Болт (8x22)
27
96600-08022-10
Болт (8x22)
