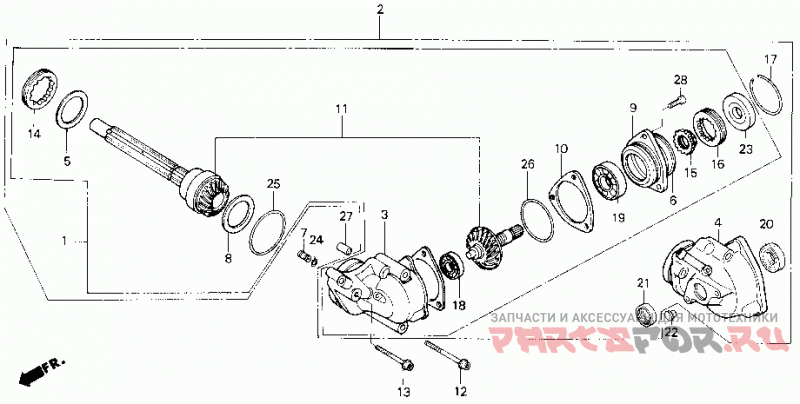

Side gear case

Honda TRX250

Honda
#oem кодцена
02
21100-HA8-680
Case, Side Gear
04
21200-HA8-680
Case, Side Gear
05
21210-MF5-003
Spring A, Lock Nut
06
21211-MF5-003
Spring B, Lock Nut
07
21215-HA0-000
Отверстие
08
21331-MF5-000
Shim (0.80)
08
21332-MF5-000
Shim (0.85)
08
21333-MF5-000
Shim (0.90)
08
21334-MF5-000
Shim (0.95)
08
21335-MF5-000
Shim (1.00)
08
21336-MF5-000
Shim (1.05)
08
21337-MF5-000
Shim (1.10)
09
21371-HA0-010
Hldr, Cross Bearing
10
21381-HA0-000
Shim (0.20)
10
21382-HA0-000
Shim (0.25)
10
21383-HA0-000
Shim (0.30)
10
21384-HA0-000
Shim (0.35)
10
21385-HA0-000
Shim (0.40)
10
21386-HA0-000
Shim (0.45)
10
21387-HA0-000
Shim (0.50)
11
23200-HA8-680
Shaft Set, Cross
12
90064-HA0-680
Bolt, Ubs (8x85)
13
90065-HA8-680
Bolt, Ubs (8x45)
14
90242-MB0-000
Nut, Lock (64mm)
15
90243-ME5-000
Nut, Lock (28mm)
16
90244-MF5-000
Nut, Lock (60mm)
17
90601-HA0-000
Стопорная пружина сальника
18
91004-HA0-004
Bearing (6302)
19
91008-MT3-004
Bearing (62/28)
19
91015-HA0-004
Bearing (62/28)
20
91204-GK8-003
Oil Seal (15x24x5)
21
91201-HA8-682
Cover, Seal (20x4)
22
91203-HA8-680
Cap, Seal
23
91205-ME5-003
Oil Seal (25x61x8.5)
24
91306-PJ4-000
Кольцо (6.8x1.9)
25
91305-MF5-003
O-ring (72x1.9)
26
91362-461-000
O-ring (70x3.0)
27
94303-10160
Палец (10x16)
28
96700-08022-17
Болт (8x22)
