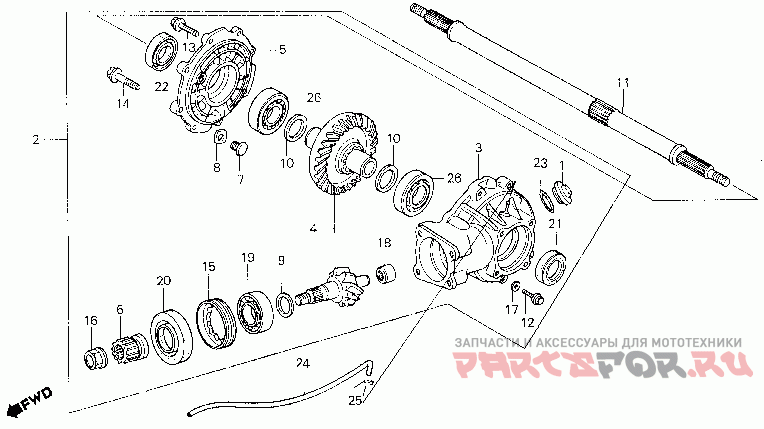

Final driven gear @ rear axle shaft

Honda ATC250ES

Honda
#oem кодцена
01
12361-035-000
Крышка
01
12361-300-000
Крышка
02
41300-HA0-680
Case, Final Gear
03
41301-HA0-680
Case, Final Gear
04
41310-HA0-300
Gear Set, Final
05
41321-HA0-680
Cvr, Final Gear Case
06
41411-HA0-000
Joint, Pinion
07
41436-MB0-310
Штифт
09
41451-HA0-000
Shim A (1.82)
09
41452-HA0-000
Shim B (1.88)
09
41453-HA0-000
Shim C (1.94)
09
41454-HA0-000
Shim D (2.00)
09
41455-HA0-000
Shim E (2.06)
09
41456-HA0-000
Shim F (2.12)
09
41457-HA0-000
Shim G (2.18)
10
41540-HA0-000
Spacer A (1.82)
10
41541-HA0-000
Spacer B (1.88)
10
41542-HA0-000
Spacer C (1.94)
10
41543-HA0-000
Spacer D (2.00)
10
41544-HA0-000
Spacer E (2.06)
10
41545-HA0-000
Spacer F (2.12)
10
41546-HA0-000
Spacer G (2.18)
10
41547-HA0-000
Spacer H (2.24)
10
41548-HA0-000
Spacer I (2.30)
11
42311-HA0-680
Ось заднего колеса
12
90109-371-000
Болт (8мм)
13
90133-MB0-000
Bolt, Flange (8x27)
14
90134-HA0-000
Болт (10x35)
15
90244-HA0-000
Nut, Lock (60mm)
16
90381-HA0-000
Nut, Hex. (16mm)
17
90471-580-000
Прокладка
18
91061-HA0-004
Подшипник (14x22x16)
19
91061-ME4-004
Bearing (22x56x16)
20
91251-HC5-005
Oil Seal (38x64x11)
21
91252-HA0-003
Oil Seal (35x49x6)
21
91252-HA0-004
Oil Seal (35x49x6)
22
91253-HA0-004
Oil Seal (35x54x6)
23
91302-001-020
Колечко (30.8mm)
24
95001-35003-60M
Bulk Hose (3.5x3000)
25
95002-02070
Клипс
26
96100-60073-00
Bearing (6007)
