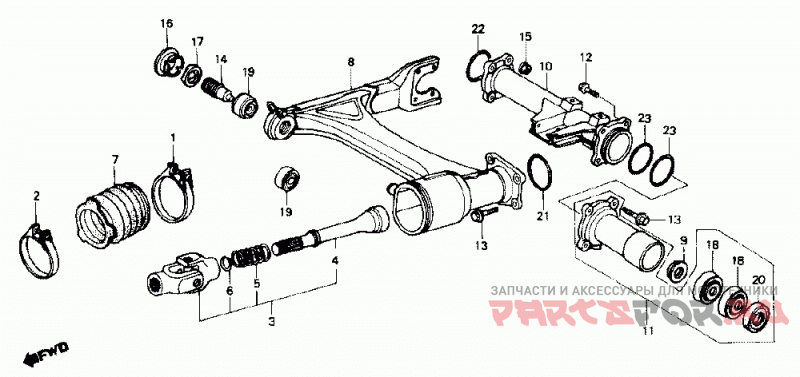

Swingarm 86,87

Honda ATC250SX

Honda
#oem кодцена
01
95018-86250
Band (86)
02
17258-HA0-680
Band Assy. (75mm)
03
40200-HA6-681
Joint, Yoke
04
40201-HA6-010
Вал гребного винта
04
40210-HA6-681
Joint, Yoke
05
40215-HA6-000
Spring, Shaft
06
40218-HA6-000
Ring, Spring Stopper
07
52101-HA8-680
Boot, Joint
08
52110-HA6-680
Swingarm, Rr.
09
52112-HA0-000
Stopper, Bearing
10
52130-HA6-680
Housing, Rr. Axle
11
52140-HA0-770
Housing, L. Pipe
12
90105-HA0-010
Болт (10mm)
13
90131-KAN-850
Болт (8x28)
14
90121-HA6-000
Bolt, R. Swingarm
15
90304-GE8-003
Гайка (10мм)
16
90312-HA0-000
Cap, Lock Nut
17
90355-469-000
Nut, Rr. Swingarm
18
91055-HA0-681
Bearing (32x58x13)
19
91066-HA0-681
Bearing (30203j)
20
91255-HA0-681
Oil Seal (42x58x10)
21
91308-500-010
O-ring (58.5x2)
22
91308-HA8-000
O-ring (52.5x2)
23
91351-737-752
O-ring, Rotary Case
