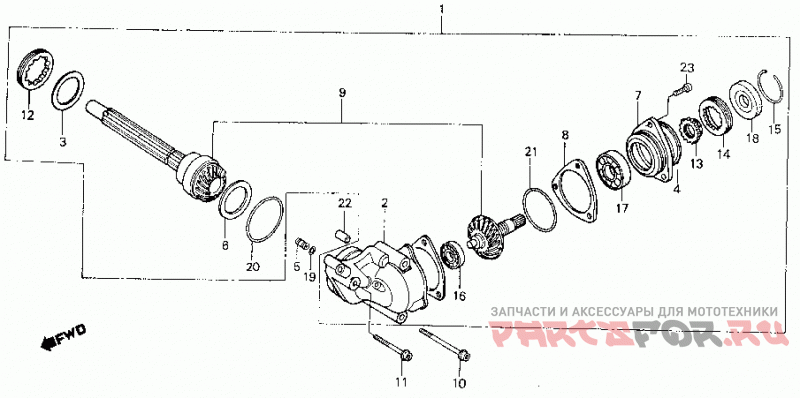

Side gear case

Honda ATC250ES

Honda
#oem кодцена
01
21100-HA0-000
Case, Side Gear
02
21200-HA0-000
Case, Side Gear
03
21210-MF5-003
Spring A, Lock Nut
04
21211-MF5-003
Spring B, Lock Nut
05
21215-HA0-000
Отверстие
06
21331-MF5-000
Shim (0.80)
06
21332-MF5-000
Shim (0.85)
06
21333-MF5-000
Shim (0.90)
06
21334-MF5-000
Shim (0.95)
06
21335-MF5-000
Shim (1.00)
06
21336-MF5-000
Shim (1.05)
06
21337-MF5-000
Shim (1.10)
07
21371-HA0-010
Hldr, Cross Bearing
08
21381-HA0-000
Shim (0.20)
08
21382-HA0-000
Shim (0.25)
08
21383-HA0-000
Shim (0.30)
08
21384-HA0-000
Shim (0.35)
08
21385-HA0-000
Shim (0.40)
08
21386-HA0-000
Shim (0.45)
08
21387-HA0-000
Shim (0.50)
09
23200-HA0-305
Shaft Set, Cross
10
90064-HA0-680
Bolt, Ubs (8x85)
11
90065-HA0-680
Bolt, Ubs (8x55)
12
90242-MB0-000
Nut, Lock (64mm)
13
90243-ME5-000
Nut, Lock (28mm)
14
90244-MF5-000
Nut, Lock (60mm)
15
90601-HA0-000
Стопорная пружина сальника
16
91004-HA0-004
Bearing (6302)
17
91008-MT3-004
Bearing (62/28)
17
91015-HA0-004
Bearing (62/28)
18
91205-ME5-003
Oil Seal (25x61x8.5)
19
91306-PJ4-000
Кольцо (6.8x1.9)
20
91305-MF5-003
O-ring (72x1.9)
21
91362-461-000
O-ring (70x3.0)
22
94303-10160
Палец (10x16)
23
96700-08022-17
Болт (8x22)
