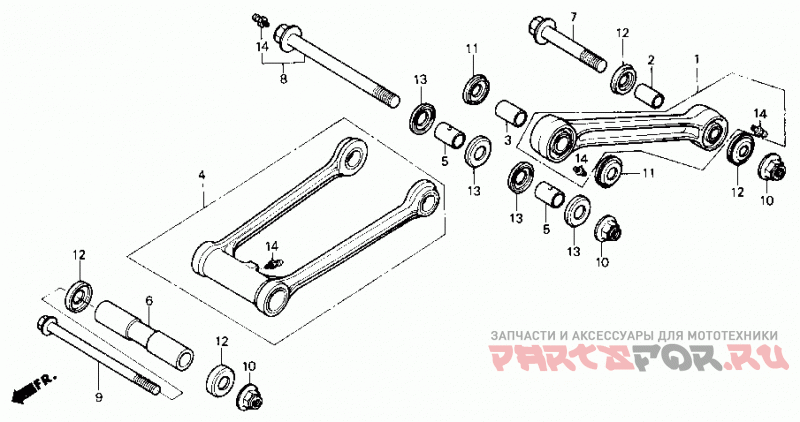

Cushion arm
Honda ATC250R
| # | oem код | название | цена |
|---|---|---|---|
01 | 52460-HA2-000 Arm, Shock Absorber | Arm, Shock Absorber | |
02 | 52467-HA2-000 Кольцо | Кольцо | |
03 | 52468-HA2-000 Кольцо | Кольцо | |
04 | 52470-HA2-000 Rod Assy. | Rod Assy. | |
05 | 52479-HA2-000 Кольцо | Кольцо | |
06 | 52486-964-000 Втулка | Втулка | |
07 | 90121-HA2-000 Bolt, Flange (12x57) | Bolt, Flange (12x57) | |
08 | 90125-HA2-000 Bolt (12x110) | Bolt (12x110) | |
09 | 90128-964-003 Bolt, Flg (12x103) | Bolt, Flg (12x103) | |
10 | 90306-181-761 Гайка (12mm) | Гайка (12mm) | |
11 | 91266-HA2-005 Seal A | Seal A | |
12 | 91266-964-672 Seal A | Seal A | |
13 | 91267-HA2-005 Seal B | Seal B | |
14 | 96201-10000 Fitting (a.76) | Fitting (a.76) |
