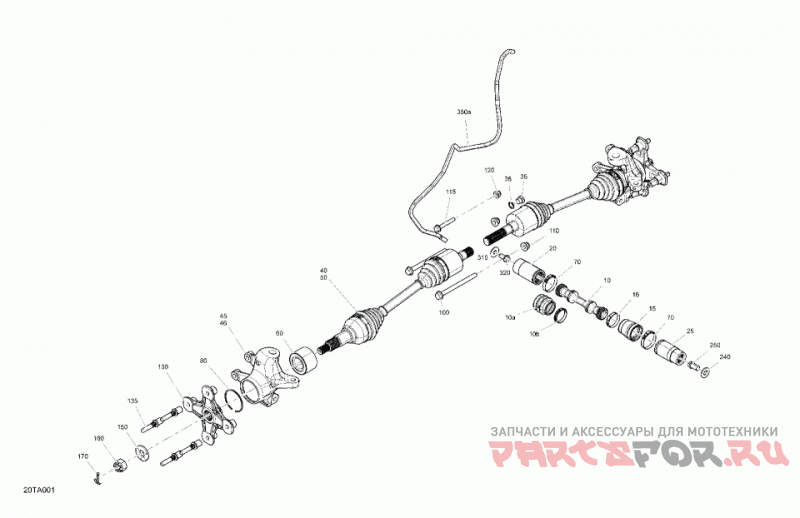

04- drive - front section - common parts

Can-Am (Bombardier) 006 - Outlander MAX 650 EFI - XT - CE

Can-Am (Bombardier)
#oem кодцена
100
230602546
Hex. Flanged Screw M10 X 125.
10a
715900118
Rubber Boot.
10b
509000045
Oetiker Gear Clamp 36.1MM.
110
233201436
Flanged Elastic Nut M10.
115
207685544
Hex. Flanged Screw M8 X 55.
120
233281414
Hex. Flanged Elastic Nut M8.
135
250300642
Wheel Stud.
15
705401093
Rubber Boot.
150
250200171
Conical Spring Washer M18.
16
293650199
Oetiker Gear Clamp.
160
232291413
Hex. Flanged Castellated Nut M18.
170
250400071
Cotter Pin.
20
705401969
Coupling Sleeve.
240
250200102
Flat Washer M12.
25
703500678
Front Bushing Shaft Kit.
250
250001042
Hex Flanged Screw M12 X 20.
25b
705400036
Wear Ring. Not Shown.
310
250200014
Flat Washer M10.
320
250001046
Hex Flanged Screw M10 X 20 S.GRIP.
35
705500504
Fill Level Plug.
350a
293830193
Polyurethane Hose.
36
705500506
Copper Washer.
40
705402236
RH CV Joint.
45
705402904
LH Knuckle.
46
705402905
RH Knuckle.
50
705402235
LH CV Joint.
60
293350118
Cone Bearing.
70
293650138
Oetiker Gear Clamp 44.0MM.
80
293370019
Circlip.
