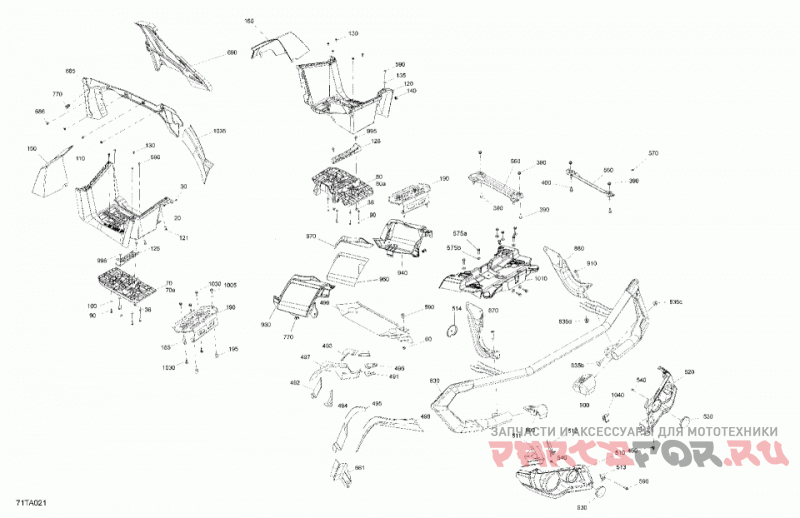

07- body - rear section

Can-Am (Bombardier) 005 - Outlander 1000R EFI - XMR - CE

Can-Am (Bombardier)
#oem кодцена
100
234062410
Flat Washer 6 mm.
1005
207664536
Hex. Flange Screw M6 X 45.
1010
705007948
Seat Holder.
1030
207562054
Flanged Hex. Screw S.GRIP M6 X 20.
1035
705008438
Heat Shield.
1040
708200462
Rod Cap.
110
705005978
LH Footboard.
120
705005977
RH Footboard.
121
250000720
Torx Screw K50 X 16.
125
705004352
LH Footrest.
126
705005395
RH Footrest.
130
207662054
Hex. Flanged Screw M6 X 20.
135
224061201
Flat Washer.
140
250000957
Extruded Panel Nut M6.
150
705006134
LH Air Deflector.
160
705006135
RH Air Deflector.
185
705006819
Coupling Nut, Large.
190
705015693
Black, Footrest.
195
705006818
Coupling Nut, Short.
20
207662054
Hex. Flanged Screw M6 X 20.
30
233261434
Flanged Elastic Nut M6.
36
233261434
Flanged Elastic Nut M6.
390
250100199
Insert Half Hex Body M6 x 1.0.
400
207561644
Hex.Fla. Screw M6 X 16, Scotch Grip.
460
517302785
Edge Clip.
491
707002456
Heat Shield.
492
707002457
Heat Shield.
493
707002458
Heat Shield.
494
707002459
Heat Shield.
495
707002460
Heat Shield.
496
707002461
Heat Shield.
497
707002462
Heat Shield.
498
707002583
Heat Shield.
499
707002464
Heat Shield.
510
705006643
LH Rear Facia.
511
707002103
Heat Shield.
512
707002107
Heat Shield.
513
707002594
Heat Shield.
514
707002465
Heat Shield.
520
705006650
RH Rear Facia.
530
705011221
Red Reflector.
540
233251434
Flanged Elastic Nut M5.
550
705007277
LH Support.
560
705007278
RH Support.
570
732610072
Push Nut.
575a
250000841
Screw Hex Flange M6 X 25.
575b
234062670
Flat Washer, Stainless.
590
250000722
Torx Screw M6 X 20.
60
233281434
Hex. Flanged Elastic Nut M8.
661
707002467
Heat Shield.
685
705014061
Deflector Body Panel.
686
732610072
Push Nut.
690
705003444
Engine Cover.
70
705011540
LH Structural Footboard. Includes 70 to 70a.
70a
232862412
Square Nut M6.
770
293150230
Tuflok Plastic Rivet.
80
705011542
RH Structural Footboard. Includes 80 to 80a.
80a
232862412
Square Nut M6.
835b
207762044
Carriage Bolt M6 X 20.
835c
233261434
Flanged Elastic Nut M6.
835d
233281434
Hex. Flanged Elastic Nut M8.
870
705008164
LH Rear Bracket.
880
705008165
RH Rear Bracket.
890
705005094
LH Bracket.
90
207763554
Carriage Bolt M6 X 35.
900
705005095
RH Bracket.
910
250000842
Stainless, Torx Screw M6 X 30.
930
715001897
LH Extension Panel.
940
705004348
RH Extension Panel.
960
705006870
Heat Shield.
970
705006871
Heat Shield.
995
207662034
Hex. Flanged Screw M6 X 20.
