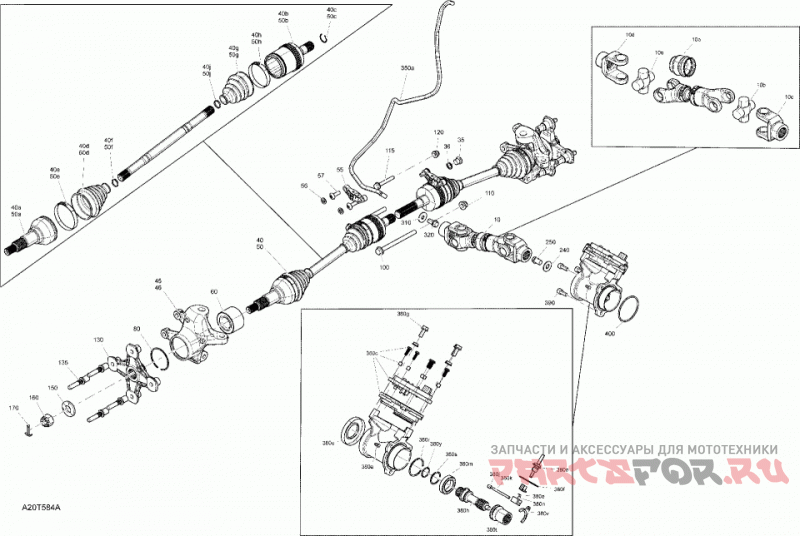

04- drive - front section - common parts - dps

Can-Am (Bombardier) 004 - Outlander T MAX 450 EFI - DPS - T Regulation

Can-Am (Bombardier)
#oem кодцена
100
230602546
Hex. Flanged Screw M10 X 125.
10a
715900118
Rubber Boot.
10b
715900435
U-Joint Cross Kit.
10c
715900497
Fixed Yoke Joint.
10d
715900498
Yoke Joint.
110
233201436
Flanged Elastic Nut M10.
115
207685544
Hex. Flanged Screw M8 X 55.
120
233281414
Hex. Flanged Elastic Nut M8.
135
250300642
Wheel Stud.
150
250200171
Conical Spring Washer M18.
160
232291413
Hex. Flanged Castellated Nut M18.
170
250400071
Cotter Pin.
240
250200102
Flat Washer M12.
250
250001039
Hex Flanged Screw M12 X 16.
310
250200014
Flat Washer M10.
320
250001046
Hex Flanged Screw M10 X 20 S.GRIP.
35
705500504
Fill Level Plug.
350a
293830193
Polyurethane Hose.
36
705500506
Copper Washer.
380a
705402360
Machined Housing.
380d
705400274
Fork.
380e
293370042
Circlip.
380f
293300117
O-Ring.
380g
250000137
Hex. Flanged Screw M8 X 20, Scotch Grip.
380h
705401509
Idler Shaft Gear.
380j
206580890
Pressure Screw M8 X 8.
380k
250400025
Dowell Pin.
380m
705400249
Ball Bearing.
380n
705402139
Slider.
380r
293370029
Circlip.
380s
293370030
Circlip.
380t
705400389
Coupling Sleeve.
380u
293250348
Oil Seal.
380v
705401553
Shifter Lever Plate.
380y
293300179
O-ring.
390
250000136
Socket Head Screw M8 X 20, Scotch Grip.
40
705402021
RH Homocinetic Joint. Includes 40 to 40j.
400
293300091
O-Ring.
40a
705401344
CV Joint.
40b
715900602
RH Plunging Joint.
40c
705401349
Circlip Joint.
40d
705401345
Boot Kit, Wheel Side.
40e
715900282
Oetiker Clamp, Large.
40f
715900283
Oetiker Clamp, Small.
40g
705401346
Boot Kit, Différential Side.
40h
715900284
Oetiker Clamp, Large.
40j
715900261
Oetiker Clamp, Small.
45
705402904
LH Knuckle.
46
705402905
RH Knuckle.
50
705402022
LH Homocinetic Joint. Includes 50 to 50j.
50a
705401344
CV Joint.
50b
715900603
LH Plunging Joint.
50c
705401349
Circlip Joint.
50d
705401345
Boot Kit, Wheel Side.
50e
715900282
Oetiker Clamp, Large.
50f
715900283
Oetiker Clamp, Small.
50g
705401346
Boot Kit, Différential Side.
50h
715900284
Oetiker Clamp, Large.
50j
715900261
Oetiker Clamp, Small.
55
705402088
Sensor Support.
56
234081410
Flat Washer 8 mm.
57
250000874
Torx Truss M8 X 25.
60
293350118
Cone Bearing.
80
293370019
Circlip.
