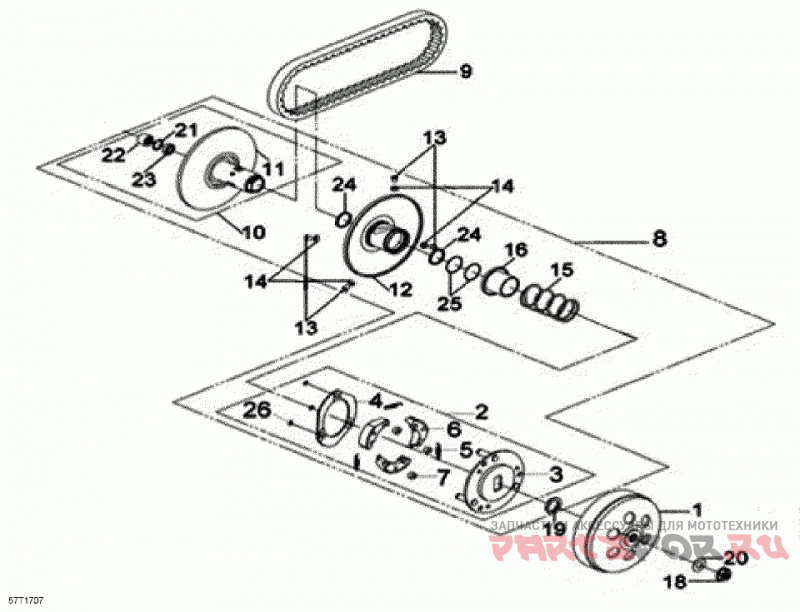

Ведомый шкив
Can-Am (Bombardier) 004 - DS 250
| # | oem код | название | цена |
|---|---|---|---|
1 | S22101HMA000 Outer Clutch. | Outer Clutch. | |
11 | S23210HMA000 Fix Flange. | Fix Flange. | |
12 | S23220HMA000 Movable Flange. | Movable Flange. | |
13 | S23225HMA000 Pin. | Pin. | |
14 | S23226HMA000 Guide Roller. | Guide Roller. | |
15 | S23233HMA000 Driven Pulley Spring. | Driven Pulley Spring. | |
16 | S23237HMA000 Seal Collar. | Seal Collar. | |
18 | S90201RFS000 Flanged Nut 14 mm. | Flanged Nut 14 mm. | |
19 | S90202HMA000 Special Nut. | Special Nut. | |
20 | S90401KJ9000 Thrust Washer. | Thrust Washer. | |
21 | S90602HMA000 Circlip. | Circlip. | |
22 | S91006HMA300 Needle Bearing. | Needle Bearing. | |
23 | S91007HMA300 Bearing. | Bearing. | |
24 | S91211HMA000 Oil Seal. | Oil Seal. | |
25 | S91305HMA000 O-ring. | O-ring. | |
9 | S1B01RB101 Drive Belt. | Drive Belt. |
