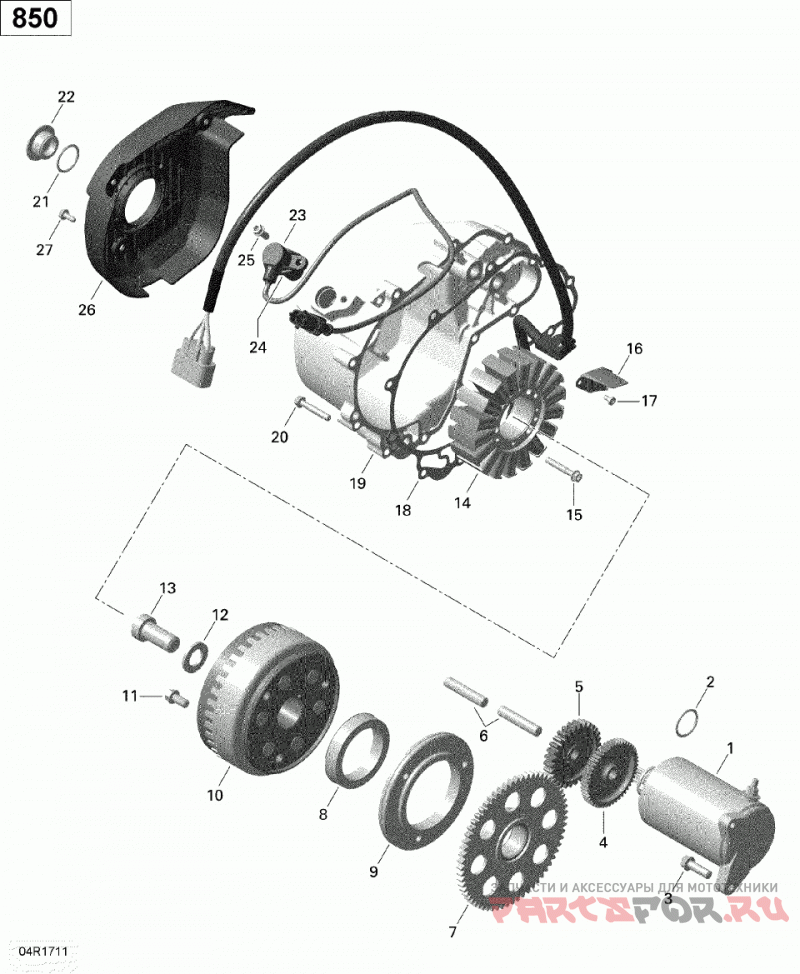

01- rotax - magneto and electric starter - 850 efi (renegade)

Can-Am (Bombardier) 003 - Renegade 850 EFI - STD_XXC - North America

Can-Am (Bombardier)
#oem кодцена
10
420296906
Деталь Flywheel, 420W. Package-STD.
10
420685704
Деталь Flywheel 650W. Except Package-STD.
11
420440852
Деталь Flanged Torx Screw M8 X 16.
12
420627270
Деталь Shim.
13
420241549
Деталь Socket Head Screw M16 X 35.
14
420685920
Деталь Stator Plate, 420W. Package-STD.
14
420685632
Деталь Stator Plate, 650W. Except Package-STD.
15
420440647
Деталь Flanged Torx Screw M6 X 30. Use With 650W Magneto.
15
420440274
Деталь Flanged Torx Screw M6 X 35. Use with 420W magneto.
16
420251880
Деталь Cable Inner Cover.
17
420240195
Деталь Tapping Screw M4 X 8.
18
420651201
Деталь Gasket.
19
420212223
Деталь Cover.
2
420250140
Деталь O-Ring.
20
420440274
Деталь Flanged Torx Screw M6 X 35.
21
420430782
Деталь O-Ring.
22
420241633
Деталь Screw Plug.
24
420431580
Деталь O-Ring.
25
420440162
Деталь Flanged Torx Screw M6 X 16.
26
420201390
Деталь Cover.
27
420941935
Деталь Taptite Screw M5 x 12.
3
420440372
Деталь Flanged Torx Screw M8 X 25.
4
420634741
Деталь Double Gear.
5
420634605
Деталь Gear, 30 Teeth.
6
420229302
Деталь Location Pin.
7
420434235
Деталь Free Wheel Gear, 64 Teeth.
8
420659112
Деталь Sprag Clutch.
9
420659263
Деталь Sprag Clutch Housing.
