01- rotax - engine lubrication - 570 efi для квадроциклов Can-Am (Bombardier) 002 - Renegade 570 EFI - XMR - North America (2021)

Москва и регионы России

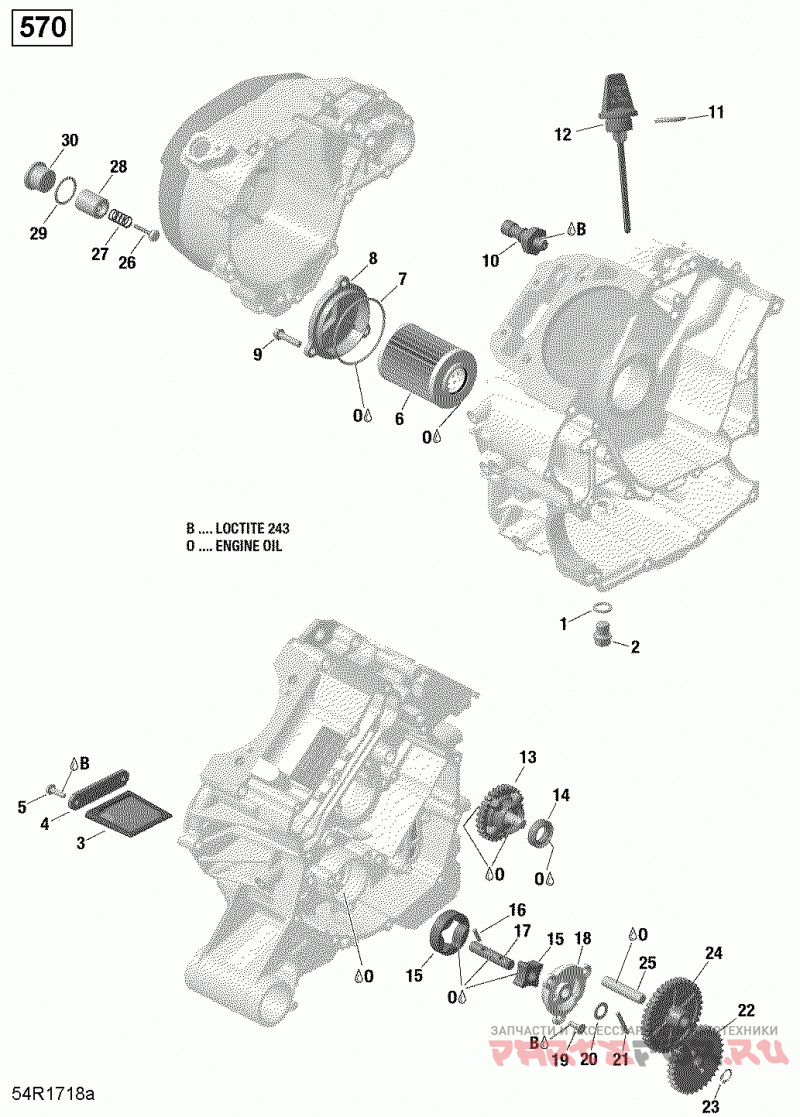

01- rotax - engine lubrication - 570 efi

Can-Am (Bombardier) 002 - Renegade 570 EFI - XMR - North America

01- rotax - engine lubrication - 570 efi

#

oem код

название

цена

1

Copper Washer.

Copper Washer.

10

Oil Pressure Switch.

Oil Pressure Switch.

11

O-Ring.

O-Ring.

12

Oil Dipstick.

Oil Dipstick.

14

Oil Seal.

Oil Seal.

15

Oil Pump Rotor.

Oil Pump Rotor.

16

Needle Pin.

Needle Pin.

17

Oil Pump Shaft.

Oil Pump Shaft.

18

Oil Pump Cover.

Oil Pump Cover.

19

Torx Screw M5 X 16.

Torx Screw M5 X 16.

2

Magnetic Drain Plug.

Magnetic Drain Plug.

20

Thrust Washer.

Thrust Washer.

21

Needle Pin.

Needle Pin.

22

Oil Pump Gear, 33 Teeth.

Oil Pump Gear, 33 Teeth.

23

Circlip.

Circlip.

24

Idle Gear, 38 Teeth.

Idle Gear, 38 Teeth.

25

Location Pin.

Location Pin.

26

Pressure Relief Valve.

Pressure Relief Valve.

27

Compression Spring.

Compression Spring.

28

Housing Valve.

Housing Valve.

29

Gasket Ring.

Gasket Ring.

3

Oil Sieve.

Oil Sieve.

30

Screw Plug.

Screw Plug.

4

Cover Sieve.

Cover Sieve.

5

Tapping Screw M5 X 16.

Tapping Screw M5 X 16.

6

Oil Filter.

Oil Filter.

7

O-Ring.

O-Ring.

8

Oil Filter Cover.

Oil Filter Cover.

9

Flanged Torx Screw M6 X 25.

Flanged Torx Screw M6 X 25.
