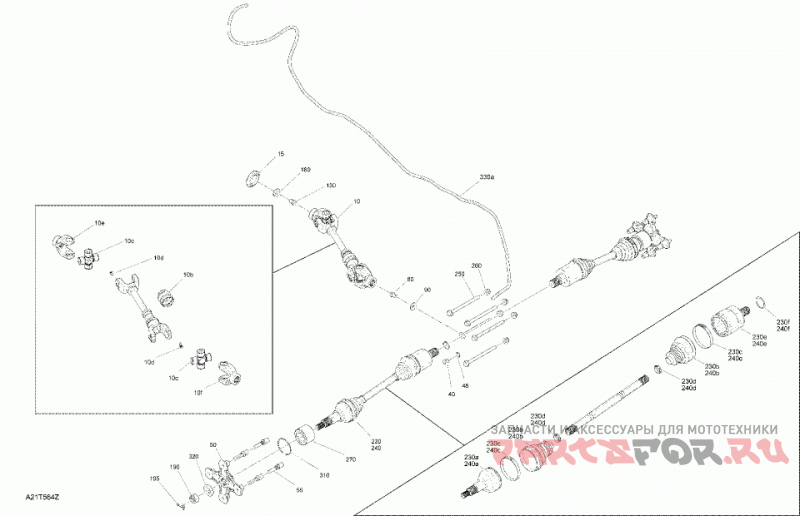

04- drive - rear section - common parts

Can-Am (Bombardier) 002 - Outlander T 570 EFI - STD_DPS_XU - T Regulation

Can-Am (Bombardier)
#oem кодцена
10b
715900118
Rubber Boot.
10d
715900295
Grease Fitting.
10e
715900499
Joint.
10f
715900438
Yoke.
10g
705501123
Protector. Not illustraded.
130
250001039
Hex Flanged Screw M12 X 16.
15
705501123
Protector.
180
250200005
Conical Spring Washer M12.
190
232291413
Hex. Flanged Castellated Nut M18.
195
250400071
Cotter Pin.
230
705502577
RH Homocinetic Joint. Models DPS and PRO. Includes 230 to 230f.
230
705501486
RH Homocinetic Joint. Model STD. Includes 230 to 230f.
230a
705501776
CV Joint.
230b
705501864
Boot Kit. Includes 230d to 230f.
230c
715900241
Oetiker Clamp, 82.1 mm.
230d
715900242
Oetiker Clamp, 27.3 mm.
230e
705501780
Plunging Joint. Model STD.
230e
715900604
Plunging Joint. Models DPS and PRO.
230f
705501781
Circlip.
240
705501485
LH Homocinetic Joint. Model With ABS. Includes 240 to 240f.
240a
705401344
CV Joint. Model Without ABS.
240a
705501776
CV Joint. Model With ABS.
240b
705501864
Boot Kit. Model With ABS.
240b
705401346
Boot Kit, Différential Side. Model Without ABS.
240b
705401345
Boot Kit, Wheel Side. Model Without ABS.
240c
715900241
Oetiker Clamp, 82.1 mm. Model With ABS.
240c
715900282
Oetiker Clamp, Large. Model Without ABS.
240c
715900284
Oetiker Clamp, Large. Model Without ABS.
240d
715900242
Oetiker Clamp, 27.3 mm. Model With ABS.
240d
715900283
Oetiker Clamp, Small. Model Without ABS.
240d
715900261
Oetiker Clamp, Small. Model Without ABS.
240e
705501780
Plunging Joint. Model With ABS.
240e
715900304
Plunging Joint. Model Without ABS.
240f
705501781
Circlip.
250
250001041
Hex. Flanged Screw M10 X 135.
260
233201436
Flanged Elastic Nut M10.
270
293350118
Cone Bearing.
310
293370019
Circlip.
320
250200171
Conical Spring Washer M18.
330a
293830193
Polyurethane Hose.
40
705500504
Fill Level Plug.
45
705500506
Copper Washer.
55
250300642
Wheel Stud.
80
250001044
Screw-Hex.Flange M10 X 16 S.GRIP.
90
250200014
Flat Washer M10.
