  5. 001 - Renegade 570 EFI - STD - North America

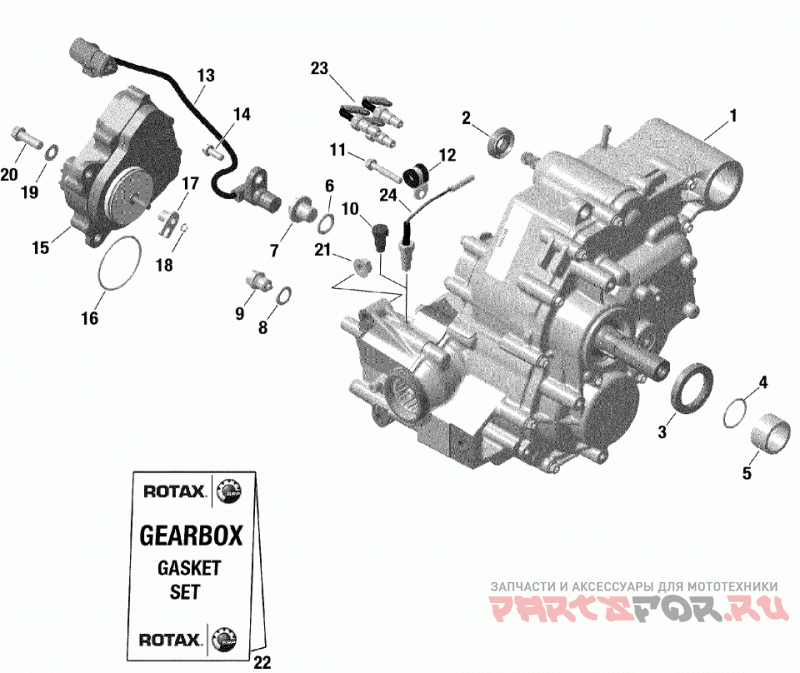

01- rotax - gear box and components 420686569

Can-Am (Bombardier) 001 - Renegade 570 EFI - STD - North America

Can-Am (Bombardier)
#oem кодцена
10
420241905
Plug Screw M10X10.
11
420440274
Flanged Torx Screw M6 X 35.
12
420251692
Cable Clamp.
13
420265621
Speed Sensor.
14
420240051
Flanged Torx Screw M6 X 13.
16
293300117
O-Ring.
17
415129175
Shifting Fork.
18
293370042
Circlip.
19
420250315
Flat Washer 8.4 mm.
2
420250450
Oil Seal.
20
420440372
Flanged Torx Screw M8 X 25.
21
420842619
Hex. Nut M8.
22
420684134
Gasket Set, Gearbox.
23
420640192
Position Switch.
3
420950089
Oil Seal.
4
420631610
O-Ring.
5
420647262
Distance Ring.
6
420650350
O-Ring.
7
420241660
Plug Screw M14 X 1.5.
8
420250640
Copper Washer.
9
420241787
Magnetic Drain Plug M12.
