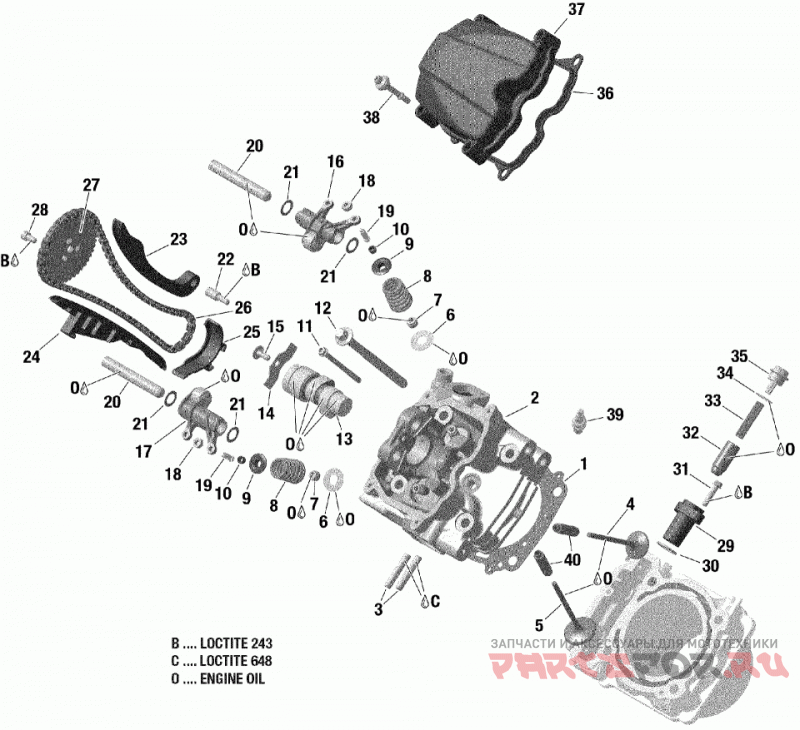

01- rotax - cylinder head, front

Can-Am (Bombardier) 001 - Renegade 1000R EFI - XXC - CE

Can-Am (Bombardier)
#oem кодцена
1
420630195
Cylinder Head Gasket.
10
420254600
Cotter Valve.
11
420440612
Flanged Torx Screw M6 X 105.
12
420441284
Torx Flange Screw M10X159.
13
420281940
Camshaft.
14
420627743
Holding Strip.
15
420241529
Torx Screw M6 X 16.
16
420653065
Rocker Arm Inlet.
17
420653075
Rocker Arm Exhaust.
18
420242910
Hex. Nut M6.
19
420241335
Adjustment Screw M6 X 0.75.
2>3
420413106
Cylinder Head.
20
420229714
Pin 12 X 87.5.
21
420944382
Shim.
22
420240943
Bearing Screw M6.
23
420436017
Chain Tension Guide.
24
420236583
Chain Guide.
25
420236351
Chain Guide.
26
420297068
Silent Chain.
27
420254438
Timing Gear 42T.
28
420840032
Allen Screw M6 X 12.
29
420236510
Chain Tensioner Housing.
3
420941014
Stud M8 x 26.
30
420430373
O-Ring.
31
420440234
Flanged Torx Screw M6 X 25.
32
420236521
Chain Tensioner Plunger.
33
420238120
Spring.
34
420250890
O-Ring.
35
420641150
Plug Screw.
36
420630262
Gasket.
37
420610393
Valve Cover.
38
420440568
Hex Screw M6 X 30.
39
715900352
Spark Plug, NGK LMAR8D-J.
4
420855029
Exhaust Valve 31mm.
40
420254377
Valve Guide.
5
420254358
Intake Valve 36.5MM.
6
420627525
Thrust Washer.
7
420430420
Valve Stem Seal.
8
420239292
Valve Spring.
9
420254137
Valve Spring Retainer.
