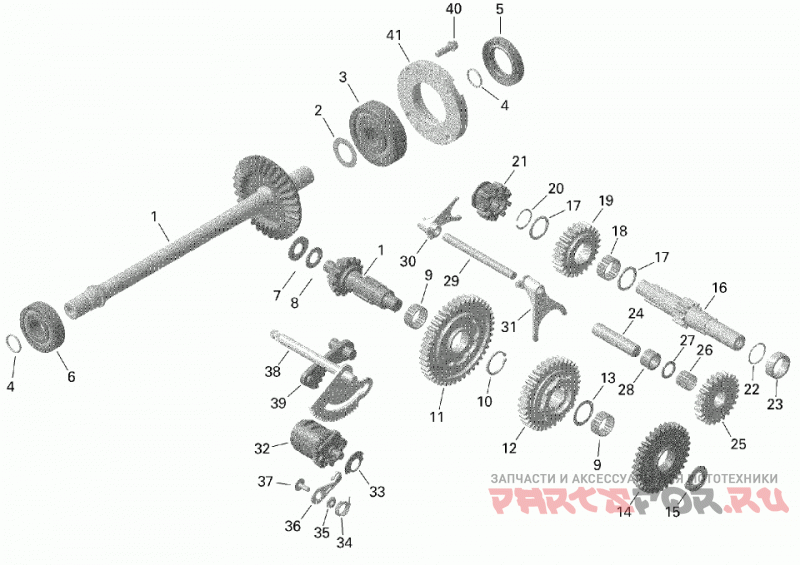

01- rotax - gear box and components - 450

Can-Am (Bombardier) 001 - Outlander T 450 EFI - STD_DPS_XU_XU+ - T Regulation

Can-Am (Bombardier)
#oem кодцена
1
420635558
Bevel Gear Ass’y.
10
420245850
Retaining Ring.
11
420635583
Sliding Gear 44T.
12
420635575
Gear Pinion 36T.
13
420427010
Thrust Washer.
14
420635184
Gear Pinion 34T.
15
420281302
Thrust Washer Set, CVT Side.
16
420220972
Countershaft 11T.
17
420227862
Thrust Washer.
18
420632070
Needle Bearing.
19
420635605
Gear Pinion 25T.
2
420281300
Washer Thrust Set.
20
420445300
Circlip.
21
420635217
Gear Shift 16T.
22
420630040
O-Ring.
23
420247123
Distance Ring.
24
420229600
Needle Pin.
25
420635674
Intermediate Gear 25T.
26
420432034
Needle Cage.
27
420944192
Thrust Washer.
28
420247122
Distance Ring.
29
420229540
Pin.
3
420632280
Ball Bearing 6405.
30
420257330
Shift Fork.
31
420257340
Shift Fork.
32
420257329
Shift Drum.
33
420627782
Isolating Washer.
34
420238290
Index Spring.
35
420227717
Step Ring.
36
420248331
Index Lever.
37
420241529
Torx Screw M6 X 16.
39
420257316
Parking Lock Lever.
4
420430370
O-Ring.
40
420440372
Flanged Torx Screw M8 X 25.
41
420610243
Bearing Cover.
5
420650683
Oil Seal.
6
420932823
Ball Bearing.
7
420281306
Thrust Washer Set, MAG Side.
8
420632300
Axial Needle Bearing.
9
420632070
Needle Bearing.
