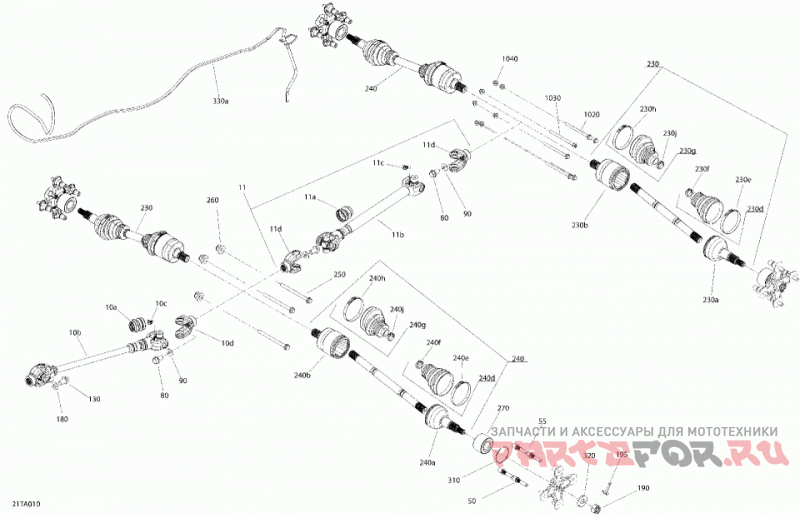

04- drive - rear section - common parts

Can-Am (Bombardier) 001 - Outlander MAX 6X6 - 450 EFI - DPS - North America

Can-Am (Bombardier)
#oem кодцена
1010
705502741
Screw Hex. Flanged M10x145. not shown.
1020
250001041
Hex. Flanged Screw M10 X 135.
1040
233201436
Flanged Elastic Nut M10.
1060
232500416
Elastic Stop Nut M10. not shown.
1070
293650042
Oetiker Clamp. not shown.
1080
705400552
Rubber Bellow. not shown.
10a
715900118
Rubber Boot.
10c
715900295
Grease Fitting.
10d
715900500
Yoke.
11a
715900118
Rubber Boot.
11b
715900326
Universal Joint.
11c
715900295
Grease Fitting.
11d
715900500
Yoke.
130
250001039
Hex Flanged Screw M12 X 16.
180
250200005
Conical Spring Washer M12.
190
232291413
Hex. Flanged Castellated Nut M18.
195
250400071
Cotter Pin.
230a
705401344
CV Joint.
230b
715900304
Plunging Joint.
230c
705501781
Circlip. not shown.
230d
705401345
Boot Kit, Wheel Side.
230e
715900282
Oetiker Clamp, Large.
230f
715900283
Oetiker Clamp, Small.
230g
705401346
Boot Kit, Différential Side.
230h
715900284
Oetiker Clamp, Large.
230j
715900261
Oetiker Clamp, Small.
240a
705401344
CV Joint.
240b
715900304
Plunging Joint.
240c
705501781
Circlip. not shown.
240d
705401345
Boot Kit, Wheel Side.
240e
715900282
Oetiker Clamp, Large.
240f
715900283
Oetiker Clamp, Small.
240g
705401346
Boot Kit, Différential Side.
240h
715900284
Oetiker Clamp, Large.
240j
715900261
Oetiker Clamp, Small.
250
250001041
Hex. Flanged Screw M10 X 135.
260
233201436
Flanged Elastic Nut M10.
270
293350118
Cone Bearing.
310
293370019
Circlip.
320
250200171
Conical Spring Washer M18.
330a
293830193
Polyurethane Hose.
40
705500504
Fill Level Plug. not shown.
45
705500506
Copper Washer. not shown.
50
705503050
Wheel Hub.
55
250300055
Wheel Stud M10 X 1.25.
80
250001044
Screw-Hex.Flange M10 X 16 S.GRIP.
90
250200014
Flat Washer M10.
