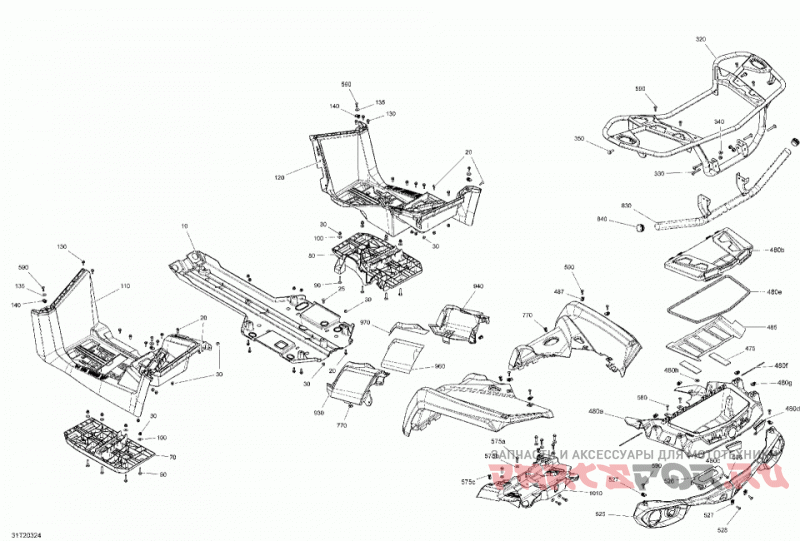

09- body - rear section - xt

Can-Am (Bombardier) 005 - Outlander T MAX 570 EFI - DPS_XT - T Regulation

Can-Am (Bombardier)
#oem кодцена
10
715002374
Protective Plate Kit.
100
234062410
Flat Washer 6 mm.
1010
705007948
Seat Holder.
110
705003525
LH Footrest Max.
120
705003521
RH Footrest Max.
130
207661654
Hex. Flanged Screw M6 X 16.
135
224061201
Flat Washer.
140
250000957
Extruded Panel Nut M6.
20
207662054
Hex. Flanged Screw M6 X 20.
25
207762044
Carriage Bolt M6 X 20.
30
233261434
Flanged Elastic Nut M6.
320
715002787
Black, Rear Luggage Rack.
330
250000761
Torx Truss Screw M8 X 50. Package XT.
340
233281464
Elastic Flange Nut M8. Package XT.
350
250001016
Hex Flanged Screw M8 X 25 S.Grip.
475
293830163
Rubber Pad.
480a
705007136
Rear Box.
480b
715004412
Storage Cover.
480c
705007448
LH Box Rear Latch.
480d
705007921
RH Box Rear Latch. Includes 480d to 480e.
480e
715900411
Neoprene Seal.
480f
705007531
Retaining Rod.
480g
250000957
Extruded Panel Nut M6.
480h
414859400
Cap.
485
705007487
Heat Deflector Sheet.
487
250000957
Extruded Panel Nut M6.
506
250000722
Torx Screw M6 X 20.
525
705011887
Rear Facia.
526
705012280
Bracket.
527
250000957
Extruded Panel Nut M6.
528
250000722
Torx Screw M6 X 20.
575a
250000841
Screw Hex Flange M6 X 25.
575b
234062670
Flat Washer, Stainless.
575c
293150230
Tuflok Plastic Rivet.
580
250000807
Torx Truss Screw M6 X 25.
590
250000722
Torx Screw M6 X 20.
70
705011540
LH Structural Footboard. Includes 70 to 70a.
770
293150230
Tuflok Plastic Rivet.
80
705011542
RH Structural Footboard. Includes 80 to 80a.
830
715001911
Rear Bumper kit. Package XT.
840
705202455
Cap. Package XT.
90
207763554
Carriage Bolt M6 X 35.
930
715001897
LH Extension Panel.
940
705004348
RH Extension Panel.
960
705006870
Heat Shield.
970
705006871
Heat Shield.
