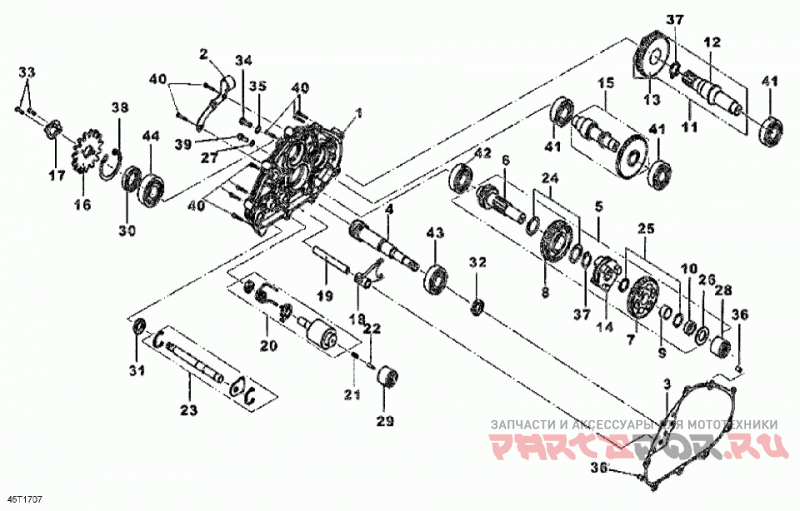

05- gear box

Can-Am (Bombardier) 004 - DS 250

Can-Am (Bombardier)
#oem кодцена
1
S21200RB1010
Transmission Case.
16
S23800RB1000
Drive Sprocket.
17
S23801RB1000
Drive Sprocket Fixing Plate.
18
S24211RB1000
Shift Fork.
19
S24241RB1000
Shift Fork Shaft.
2
S21201RB1000
Inner Cover Stay.
21
S24319R02000
Gear Indication Spg.
22
S24323R02000
Gear Indication.
27
S90474M9Q000
Washer.
28
S91003RB1000
Needle Bearing.
29
S91103X17000
Needle Bearing.
3
S21395RB1000
Cover Transmission Gasket.
30
S91209RCA000
Oil Seal.
31
S91202RB1000
Oil Seal.
32
S91204HMA000
Oil Seal.
33
S92101060100H
Hex. Bolt.
34
S9280012000
Drain Plug Screw.
35
S9410912000
Washer 12 mm.
36
S9430110140
Dowel Pin.
38
S9452052000
Circlip.
39
S957010801200
Flanged Bolt M8 X 12.
4
S23411RB1000
Drive Shaft.
40
S957010804000
Flanged Bolt M8 X 40.
41
S961006204010
Ball Bearing.
42
S961006304010
Ball Bearing.
43
S961006305300
Ball Bearing.
44
293350115
Ball Bearing.
