  5. 002 - Outlander T 570 EFI - STD_DPS_PRO - T Regulation

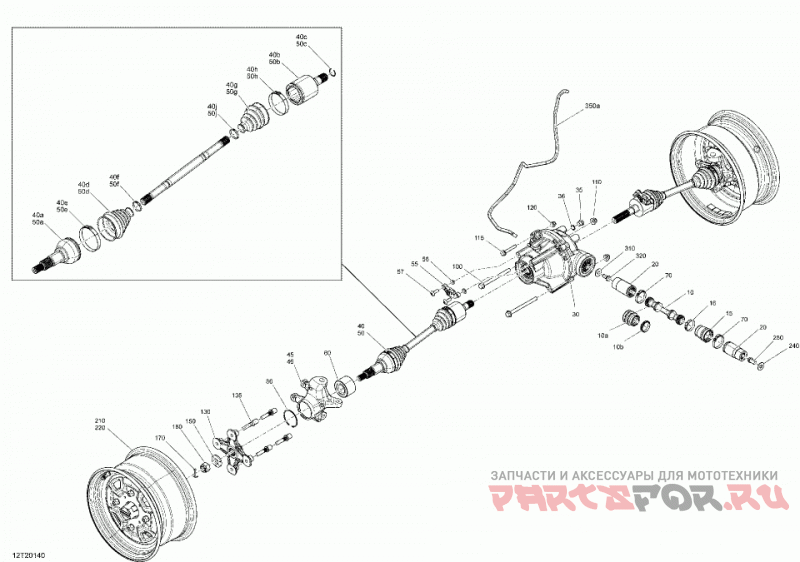

07- front drive - common parts

Can-Am (Bombardier) 002 - Outlander T 570 EFI - STD_DPS_PRO - T Regulation

Can-Am (Bombardier)
#oem кодцена
100
230602546
Hex. Flanged Screw M10 X 125.
10a
715900118
Rubber Boot.
10b
509000045
Oetiker Gear Clamp.
110
233201436
Hex. Flanged Elastic Nut M10.
115
207685544
Hex. Flanged Screw M8 X 55.
120
233281414
Hex. Flanged Elastic Nut M8.
135
250300642
Wheel Stud. Tightening Torque: See Bulletin ATV 2020-4.
15
705401093
Rubber Boot.
150
250200171
Conical Spring Washer M18.
16
293650199
Oetiker Gear Clamp.
160
232291413
Hex. Flanged Castellated Nut M18.
170
250400071
Cotter Pin.
20
705401969
Coupling Sleeve.
240
250200102
Flat Washer M12.
25
703500678
Front Bushing Shaft Kit. Not Shown.
250
250001042
Hex Flanged Screw M12 X 20.
30
703500908
Front Differential. Packages PRO. Includes 30 to 30y.
30
703500907
Front Differential. Package STD. Includes 30 to 30y.
30
705402020
Front Differential. Package DPS. Includes 30 to 30x.
310
250200014
Flat Washer M10.
320
250001046
Hex Flanged Screw M10 X 20 S.GRIP.
35
705500504
Fill Level Plug.
350a
293830193
Polyurethane Hose.
36
705500506
Copper Washer.
40
705401428
RH Front half shaft. Packages STD, PRO & PRO+.
40
705402021
RH Homocinetic Joint. Package DPS.
40a
705401344
CV Joint. Package DPS.
40a
715900297
CV Joint. Packages STD, PRO & PRO+.
40b
715900298
CV Boot Kit, Wheel Side. Packages STD, PRO & PRO+. Includes to.
40b
715900602
RH Plunging Joint. Package DPS.
40c
705401349
Circlip Joint. Package DPS.
40c
715900262
Oetiker Clamp, Large. Packages STD, PRO & PRO+.
40d
705401345
Boot Kit, Wheel Side. Package DPS. Includes to.
40d
715900317
Oetiker Clamp, Small. Packages STD, PRO & PRO+.
40e
715900299
CV Boot Kit, Differential Side. Packages STD, PRO & PRO+. Includes to.
40e
715900282
Oetiker Clamp, Large. Package DPS.
40f
715900318
Oetiker Clamp, Large. Packages STD, PRO & PRO+.
40f
715900283
Oetiker Clamp, Small. Package DPS.
40g
705401346
Boot Kit, Différential Side. Package DPS. Includes to.
40g
715900317
Oetiker Clamp, Small. Packages STD, PRO & PRO+.
40h
715900300
RH Plunging CV Joint. Packages STD, PRO & PRO+.
40h
715900284
Oetiker Clamp, Large. Package DPS.
40j
705401349
Circlip Joint. Packages STD, PRO & PRO+.
40j
715900261
Oetiker Clamp, Small. Package DPS.
45
705401290
LH Knuckle.
46
705401291
RH Knuckle.
50
705401429
LH Front half shaft. Packages STD, PRO & PRO+.
50
705402022
LH Homocinetic Joint. Package DPS.
50a
705401344
CV Joint. Package DPS.
50a
715900297
CV Joint. Packages STD, PRO & PRO+.
50b
715900298
CV Boot Kit, Wheel Side. Packages STD, PRO & PRO+. Includes to.
50b
715900603
LH Plunging Joint. Package DPS.
50c
705401349
Circlip Joint. Package DPS.
50c
715900262
Oetiker Clamp, Large. Packages STD, PRO & PRO+.
50d
705401345
Boot Kit, Wheel Side. Package DPS. Includes to.
50d
715900317
Oetiker Clamp, Small. Packages STD, PRO & PRO+.
50e
715900299
CV Boot Kit, Differential Side. Packages STD, PRO & PRO+. Includes to.
50e
715900282
Oetiker Clamp, Large. Package DPS.
50f
715900318
Oetiker Clamp, Large. Packages STD, PRO & PRO+.
50f
715900283
Oetiker Clamp, Small. Package DPS.
50g
705401346
Boot Kit, Différential Side. Package DPS. Includes to.
50g
715900317
Oetiker Clamp, Small. Packages STD, PRO & PRO+.
50h
715900301
LH Plunging CV Joint. Packages STD, PRO & PRO+.
50h
715900284
Oetiker Clamp, Large. Package DPS.
50j
705401349
Circlip Joint. Packages STD, PRO & PRO+.
50j
715900261
Oetiker Clamp, Small. Package DPS.
55
705402088
Sensor Support. Package DPS.
56
234081410
Flat Washer 8 mm. Package DPS.
57
250000874
Torx Truss M8 X 25. Package DPS.
60
293350118
Cone Bearing.
70
293650138
Oetiker Gear Clamp.
80
293370019
Circlip.
