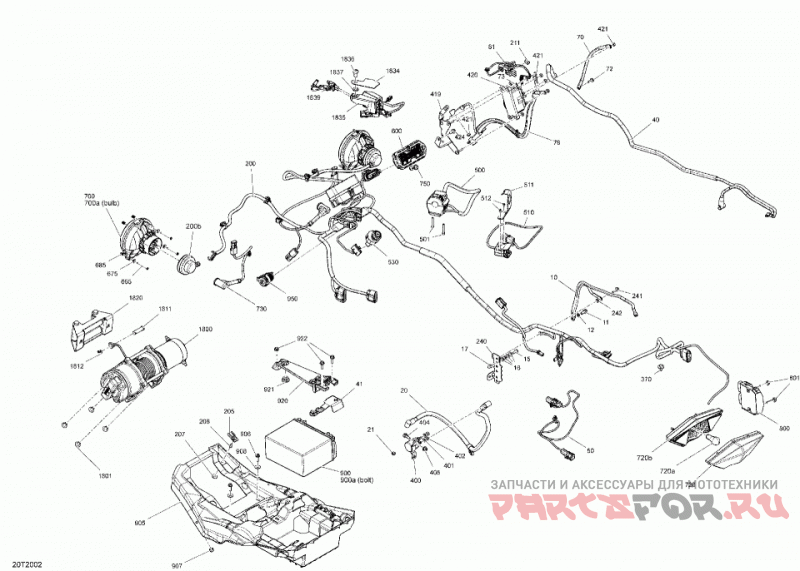

Электрика для квадроциклов Can-Am (Bombardier) 002 - Outlander 570 EFI - STD_DPS_XT_HUNTING

Электрика

Can-Am (Bombardier) 002 - Outlander 570 EFI - STD_DPS_XT_HUNTING - North America

oem код

название

цена

710004382

Ground Cable.

207561644

Hex.Fla. Screw M6 X 16, Scotch Grip.

234161601

Lock Washer Helical M6.

250000717

Torx Head Screw M6 X 16.

224061121

Flat Washer.

232361493

Domed Nut M6.

1800

705008546

Winch. Packages XT & Hunting Edition.

1801

250000746

Torx Truss Screw M8 X 16. Packages XT & Hunting Edition.

1811

250400021

Clevis Pin. Packages XT & Hunting Edition.

1812

250400022

Cotter Pin. Packages XT & Hunting Edition.

1820

715000011

Winch Roller. Packages XT & Hunting Edition.

1834

715004008

Top Plate. Package Hunting Edition.

1835

710004990

Multifonction Housing Assembly. Package Hunting Edition.

1836

710005908

Screw M10 X1.25 X 20 BHCS S.Grip. Package Hunting Edition.

1837

503192496

Washer. Package Hunting Edition.

1839

710004567

Cable. Package Hunting Edition.

710004377

Positive Cable.

200

710006172

Electric Harness. Packages XT, DPS & Hunting Edition. Includes 200 to 200b.

200a

710003976

Fuse Shematic Decal.

200b

710004020

Headlamp Protector Cap.

205

270000141

Clip.

206

390402300

Pop Rivet 3/16

207

391301600

Washer.

232561414

Elastic Stop Nut M6.

211

710000992

Clip. Packages XT & Hunting Edition.

240

710004118

Connector Bracket.

241

210262040

Hex. Flanged Screw M6 X 20.

242

234461608

External Serrated Lock Washer 6 mm.

370

293730040

Mount Dart.

710004376

Positive Cable. Packages STD & DPS.

400

710001364

Starter Relay.

401

234161601

Lock Washer Helical M6.

402

232561414

Elastic Stop Nut M6.

404

207662054

Hex. Flanged Screw M6 X 20.

405

233261414

Hex. Flanged Elastic Nut M6 x 1.0.

710006729

Cap Battery Cable.

419

710004935

Module Support. Packages XT & Hunting Edition.

420

710001000

Winch Solenoid. Packages XT & Hunting Edition.

421

232561414

Elastic Stop Nut M6. Packages XT & Hunting Edition.

424

207561644

Hex.Fla. Screw M6 X 16, Scotch Grip. Packages XT & Hunting Edition.

710005819

Extension Cable 02 Sensor.

500

710005072

Multi-Function Handle.

501

205053588

Socket Head Screw M5 X 35.

510

710005241

Winch Switch. Packages XT & Hunting Edition.

511

710004670

Black Support. Packages XT & Hunting Edition.

512

250000153

Hex. Cap Screw 6-32 X 1/4

530

710005153

Ignition Switch With Keys.

600

710005553

Speedometer.

665

250000718

Hex. Screw K40 X 45.

675

517225900

Flat Washer.

685

517168600

Spring.

710005163

Negative Cable. Packages XT & Hunting Edition.

700

710003900

Low Beam.

700a

710000871

Bulb, 12V 35/35W.

210261640

Hex Flanged Screw M6 X 16. Packages XT & Hunting Edition.

720a

520000758

Bulb.

720b

515175494

Male Housing, 3 Circuits.

234461608

External Serrated Lock Washer 6 mm. Packages XT & Hunting Edition.

750

710003910

Pilot Lamp Cap.

710005164

Winch Cable. Packages XT & Hunting Edition.

800

710005569

Voltage Regulator. Packages XT , Hunting Edition & DPS.

800

710001103

Voltage Regulator. Package STD.

801

207563034

Hex. Flanged Screw M6 X 30, Scotch Grip.

710005246

Winch Cable. Packages XT & Hunting Edition.

900a

250000282

Battery Bolt Kit.

905

710006561

Battery Support.

906

210262050

Washer Head Hexagonal Screw.

907

293830005

Rubber Bumper.

908

234062670

Flat Washer, Stainless.

920

710002404

Fixation Plate.

921

705014429

Stopper Rubber.

922

207662054

Hex. Flanged Screw M6 X 20.

950

710001248

Outlet DC.
