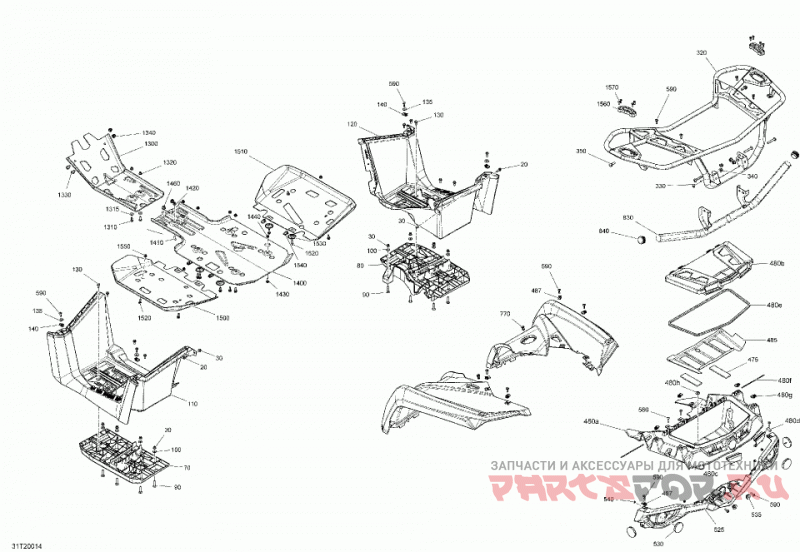

09- body - rear section - mossy oak edition

Can-Am (Bombardier) 002 - Outlander 570 EFI - STD_DPS_XT_HUNTING - North America

Can-Am (Bombardier)
#oem кодцена
100
234062410
Flat Washer 6 mm.
110
705007040
LH Footrest.
120
705007039
RH Footrest.
130
207661654
Hex. Flanged Screw M6 X 16.
1300
705205019
Front Skid Plate. Package Hunting Editon.
1310
250000712
Torx Screw M6 X 20. Package Hunting Editon.
1315
234062670
Flat Washer, Stainless. Package Hunting Editon.
1320
233261434
Flanged Elastic Nut M6. Package Hunting Editon.
1330
236282054
Hex. Screw M8 X 20. Package Hunting Editon.
1340
233281434
Hex. Flanged Elastic Nut M8. Package Hunting Editon.
135
224061201
Flat Washer.
140
250000957
Extruded Panel Nut M6.
1400
705204031
Central Skid Plate. Package Hunting Editon.
1410
207762044
Carriage Bolt M6 X 20. Package Hunting Editon.
1420
233261434
Flanged Elastic Nut M6. Package Hunting Editon.
1430
207662054
Hex. Flanged Screw M6 X 20. Package Hunting Editon.
1440
250100199
Insert Half Hex Body M6 x 1.0. Package Hunting Editon.
1460
233281434
Hex. Flanged Elastic Nut M8. Package Hunting Editon.
1500
705010659
LH Skid Plate. Package Hunting Editon.
1510
705010660
RH Skid Plate. Package Hunting Editon.
1520
207662054
Hex. Flanged Screw M6 X 20. Package Hunting Editon.
1530
705007171
Cup. Package Hunting Editon.
1540
250000957
Extruded Panel Nut M6. Package Hunting Editon.
1550
250100199
Insert Half Hex Body M6 x 1.0. Package Hunting Editon.
1560
715002350
Linq Base Kit. Package Hunting Editon.
1570
250000720
Torx Screw K50 X 16. Package Hunting Editon.
20
207662054
Hex. Flanged Screw M6 X 20.
30
233261434
Flanged Elastic Nut M6.
320
715005986
Black, Rear Luggage Rack.
330
250000761
Torx Truss Screw M8 X 50. Packages XT & Hunting Edition.
340
233281464
Elastic Flange Nut M8. Packages XT & Hunting Edition.
350
250001016
Hex Flanged Screw M8 X 25 S.Grip.
475
293830163
Rubber Pad.
480a
705007136
Rear Box.
480b
715004412
Storage Cover.
480c
705007448
LH Box Rear Latch.
480d
705007921
RH Box Rear Latch. Includes 480d to 480e.
480e
715900411
Neoprene Seal.
480f
705007531
Retaining Rod.
480g
250000957
Extruded Panel Nut M6.
480h
414859400
Cap.
485
705007487
Heat Deflector Sheet.
487
250000957
Extruded Panel Nut M6.
525
705005576
Rear Facia.
530
705011221
Red Reflector.
535
705003666
Rubber Grommet.
540
233251414
Hex. Flanged Elastic Nut M5.
580
250000807
Torx Truss Screw M6 X 25.
590
250000722
Torx Screw M6 X 20.
70
705011540
LH Structural Footboard. Includes 70 to 70a.
770
293150230
Tuflok Plastic Rivet.
80
705011542
RH Structural Footboard. Includes 80 to 80a.
830
715001911
Rear Bumper kit. Packages XT & Hunting Edition.
840
705202455
Cap. Packages XT & Hunting Edition.
90
207763554
Carriage Bolt M6 X 35.
