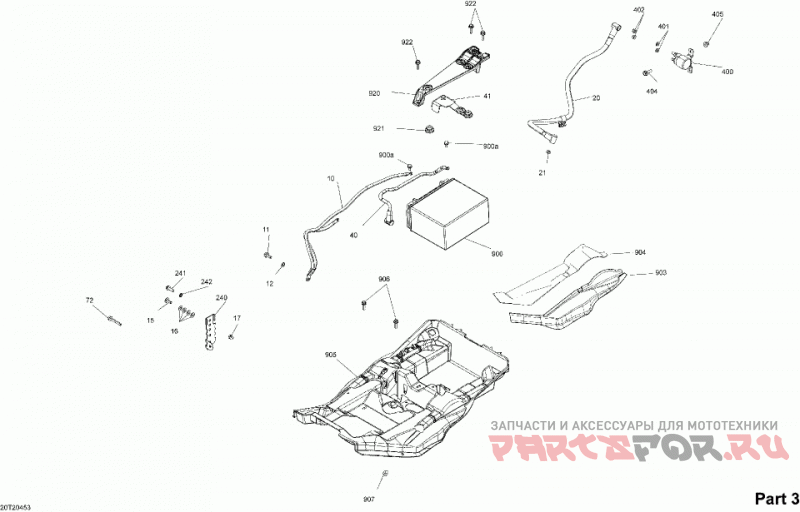

10- electrical system - section 3

Can-Am (Bombardier) 001 - Renegade 570 EFI - XMR - International

Can-Am (Bombardier)
#oem кодцена
10
710004382
Ground Cable.
11
207561644
Hex.Fla. Screw M6 X 16, Scotch Grip.
12
234161601
Lock Washer Helical M6.
15
250000717
Torx Head Screw M6 X 16.
16
224061121
Flat Washer.
17
232361493
Domed Nut M6.
20
710004377
Positive Cable.
21
232561414
Elastic Stop Nut M6.
240
710004118
Connector Bracket.
241
210262040
Hex. Flanged Screw M6 X 20.
242
234461608
External Serrated Lock Washer 6 mm.
40
710004376
Positive Cable.
400
710001364
Starter Relay.
401
234161601
Lock Washer Helical M6.
402
232561414
Elastic Stop Nut M6.
404
207662054
Hex. Flanged Screw M6 X 20.
405
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
41
710006729
Cap Battery Cable.
72
210261640
Hex Flanged Screw M6 X 16.
900a
250000282
Battery Bolt Kit.
903
710006532
Heat Shield.
904
710006533
Heat Shield.
905
710006561
Battery Support.
906
210262050
Washer Head Hexagonal Screw.
907
293830005
Rubber Bumper.
920
710002404
Fixation Plate.
921
705014429
Stopper Rubber.
922
207662054
Hex. Flanged Screw M6 X 20.
