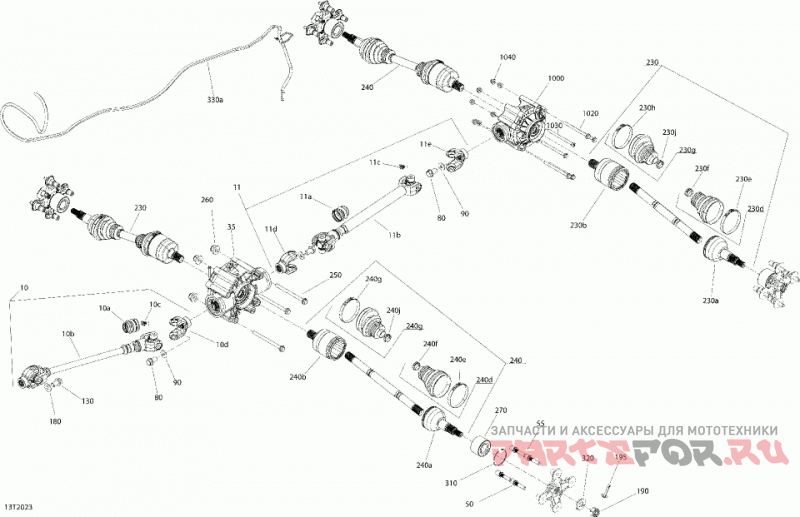

08- rear drive - common parts

Can-Am (Bombardier) 001 - Outlander T 6X6 - 450 EFI - T Regulation

Can-Am (Bombardier)
#oem кодцена
1010
705502741
Screw Hex. Flanged M10x145. not shown.
1020
250000508
Hex. Flanged Screw M10 x 135.
1030
231003587
Screw-socket Hd.din.912.
1040
233201436
Flanged Elastic Nut M10.
1060
232500416
Elastic Stop Nut M10. not shown.
1070
293650042
Oetiker Clamp. not shown.
1080
705400352
Rubber Bellow. not shown.
10a
715900118
Rubber Boot.
10c
715900295
Grease Fitting.
10d
715900439
Fixe Yoke.
10e
705400036
Wear Ring. not shown.
11a
715900118
Rubber Boot.
11b
715900326
Universal Joint. Includes 11b to 11c.
11c
715900295
Grease Fitting.
11d
715900500
Yoke.
11e
715900500
Yoke.
11f
705501123
Protector. not shown.
130
250001039
Hex Flanged Screw M12 X 16.
180
250200005
Conical Spring Washer M12.
190
250100047
Hex. Castellated Nut M18.
195
250400071
Cotter Pin.
230a
705401344
CV Joint.
230b
715900304
Plunging Joint.
230c
705501781
Circlip. not shown.
230d
705401345
Boot Kit, Wheel Side. Includes 230d to 230f.
230e
715900282
Oetiker Clamp, Large.
230f
715900283
Oetiker Clamp, Small.
230g
705401346
Boot Kit, Différential Side. Includes 230g to 230j.
230h
715900284
Oetiker Clamp, Large.
230j
715900261
Oetiker Clamp, Small.
240a
705401344
CV Joint.
240b
715900304
Plunging Joint.
240c
705501781
Circlip. not shown.
240d
705401345
Boot Kit, Wheel Side. Includes 240d to 240f.
240e
715900282
Oetiker Clamp, Large.
240f
715900283
Oetiker Clamp, Small.
240g
705401346
Boot Kit, Différential Side. Includes 240g to 240j.
240h
715900284
Oetiker Clamp, Large.
240j
715900261
Oetiker Clamp, Small.
250
250001041
Hex. Flanged Screw M10 X 135.
260
233201436
Flanged Elastic Nut M10.
270
293350118
Cone Bearing.
310
293370019
Circlip.
320
250200171
Conical Spring Washer M18.
330a
293830193
Polyurethane Hose.
40
705500504
Fill Level Plug. not shown.
45
705500506
Copper Washer. not shown.
50
705501900
Wheel Hub.
55
250300048
Wheel Stud.
80
250001044
Screw-Hex.Flange M10 X 16 S.GRIP.
90
250200014
Flat Washer M10.
